11.10 Feed roller ASSY upper MX

(1) Place the frame R ASSY MX face up.

(2) Remove the collar 6 from the feed roller ASSY upper MX.

(3) Release the hook, and remove the eject gear Z20M075 from the feed roller ASSY upper

MX.

(4) Remove the collar 6 from the feed roller ASSY upper MX.

(5) Release the hook, and remove the bushing 6 from the feed roller ASSY upper MX.

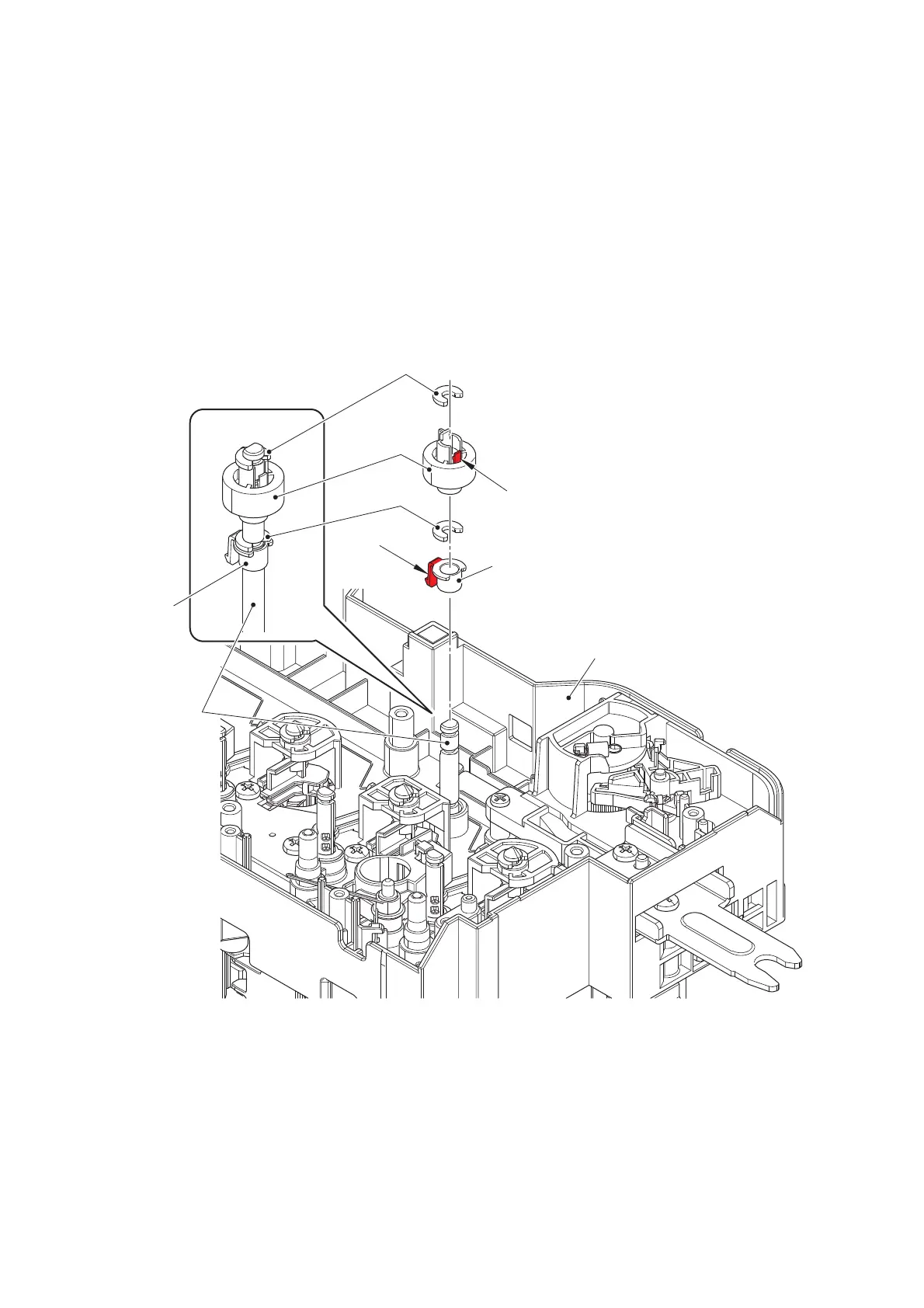

Fig. 3-138

Hook

Collar 6

Eject gear

Z20M075

Collar 6

Hook

Bushing 6

Feed roller

ASSY upper

Frame R ASSY MX

Bushing 6
