(6) Place the frame L ASSY MX face up.

(7) Release the hook, and remove the feed roller gear L Z21M08 MX from the feed roller

ASSY upper MX.

(8) Remove the collar 6 from the feed roller ASSY upper MX.

(9) Turn the feed roller bush MX in the direction of the arrow 9, and remove it from the frame

L ASSY MX.

(10) Remove the feed roller ASSY upper MX in the direction of the arrow 10.

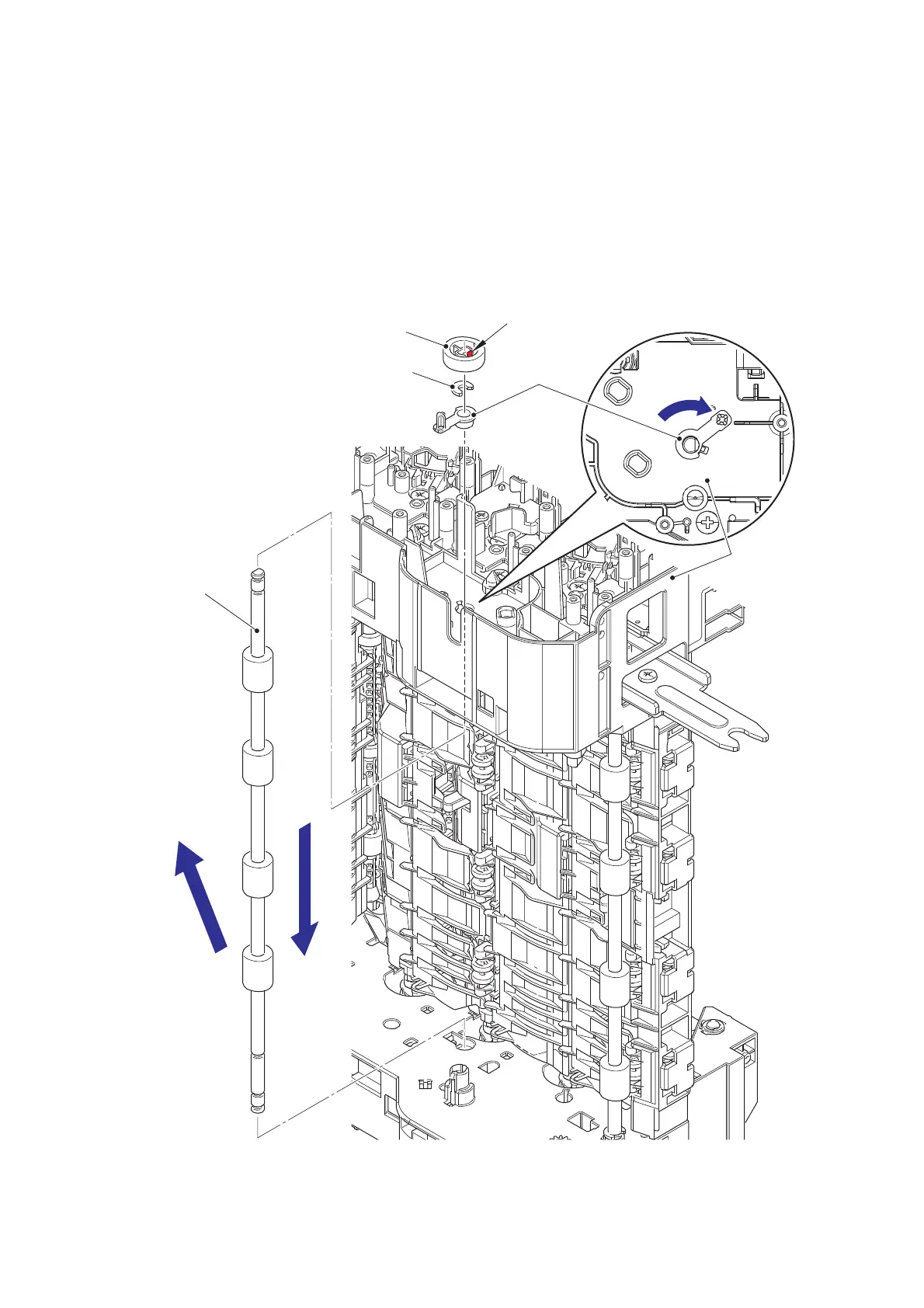

Fig. 3-139

10a

10b

Hook

Feed roller gear L Z21M08 MX

Collar 6

Feed roller

bush MX

Feed roller ASSY

upper MX

Frame L

ASSY MX
