3-17

Confidential

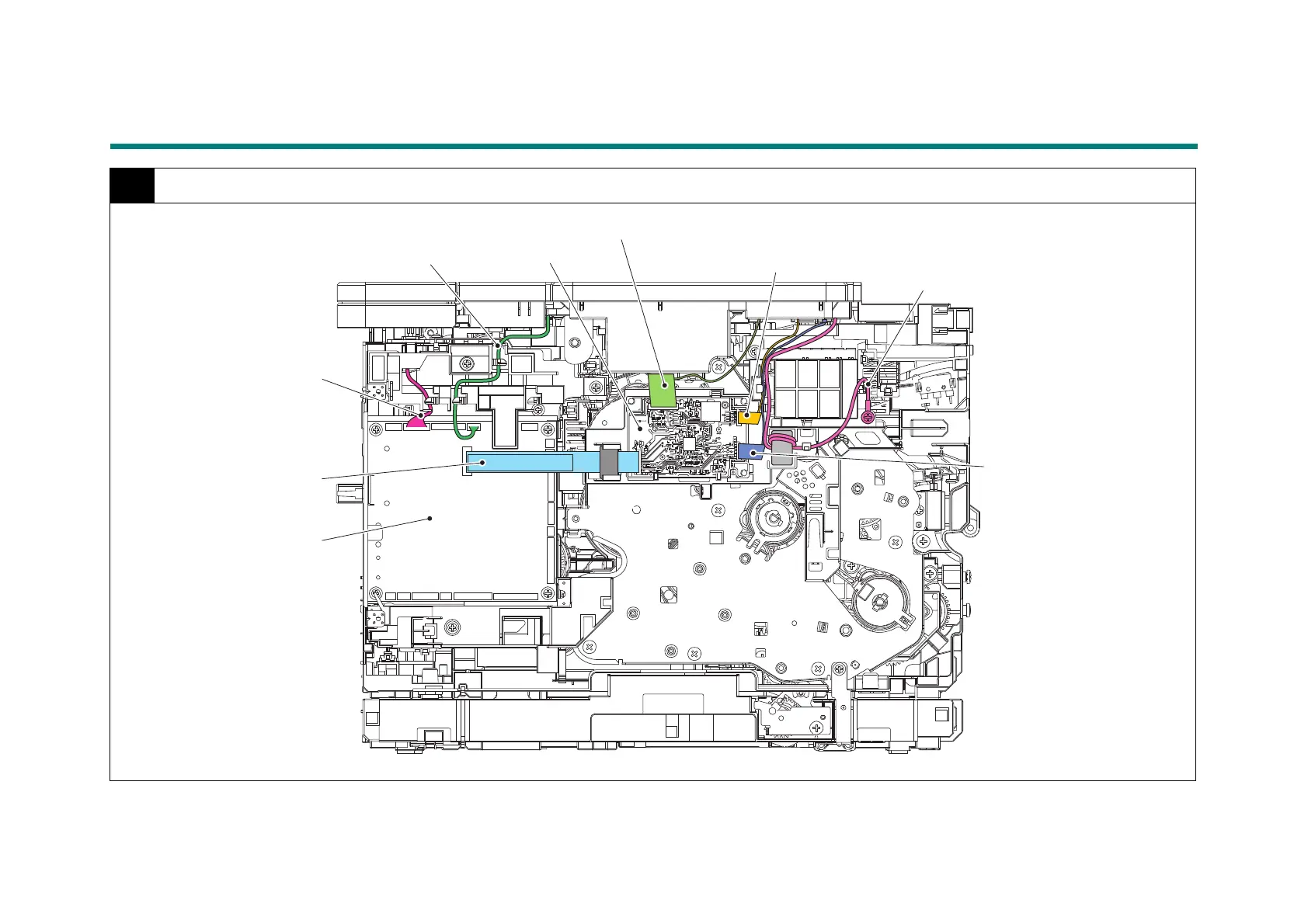

7. HARNESS ROUTING

1 Left side of the machine (Touch panel models)

Harness colors are subject to change for some reason.

Key PCB flat cable

LCD flat cable

FG harness A (BK)

NFC flat cable

Panel PCB ASSY

Stack Sensor harness (WH, BK, RD)

MX connector harness

(GR, WH, PU)

Panel flat cable

Main PCB ASSY
