Brother HL-5590DN

To Next Page

To Previous Page

3-172

Confidential

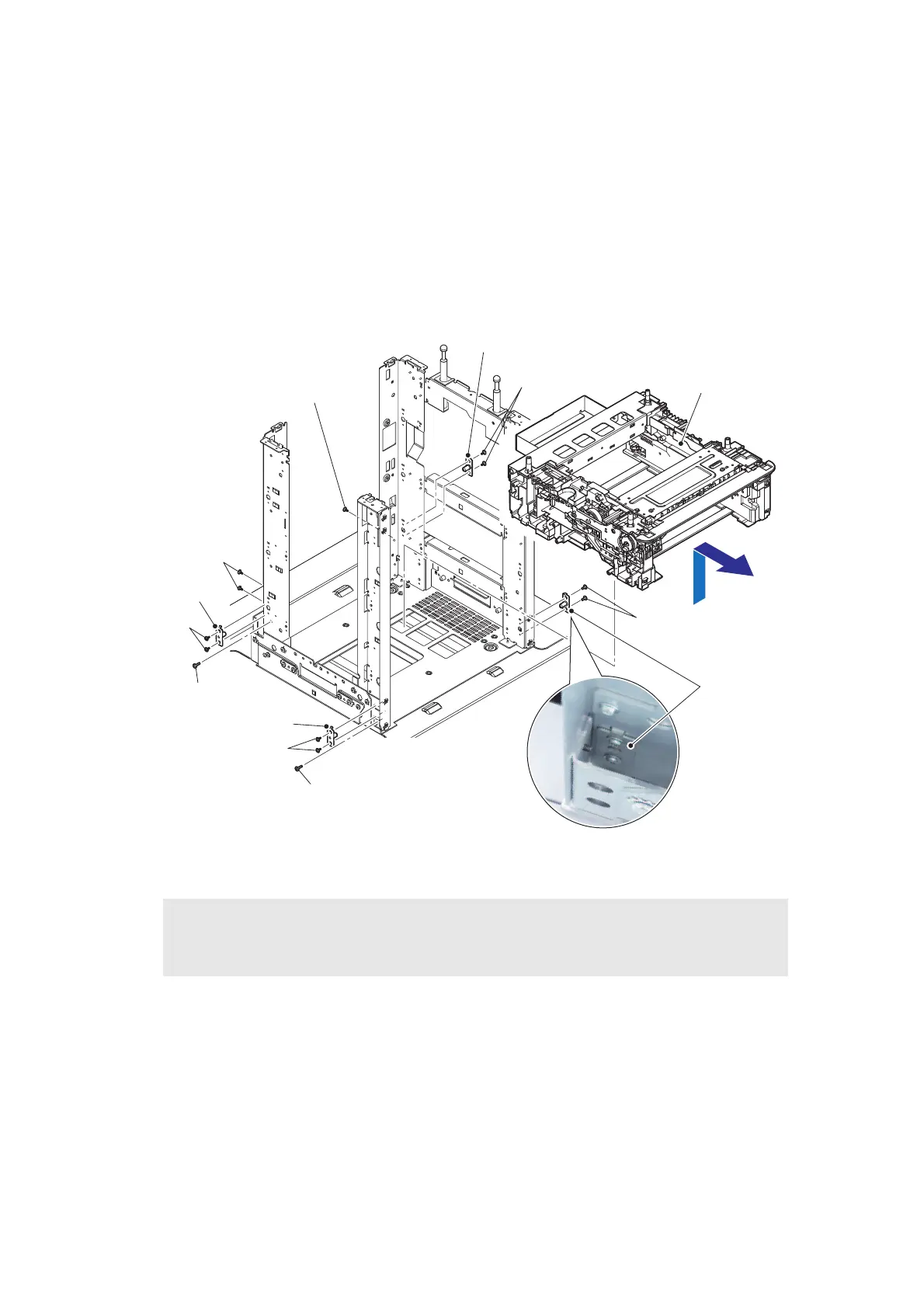

12.13 T5TT unit

(1) Remove the two taptite cup S M3x8 SR screws to remove the positioning plate calking

ASSY. (Four places)

(2) Remove the three taptite cup S M3x8 SR screws and the two taptite bind B M4x10

screws. Remove the T5TT unit in the direction of the arrow.

Fig. 3-169

Assembling Note:

• It's easier to attach the positioning plate calking ASSY on the right side with a magnet

due to the narrow work space.

T5TT unit

Taptite cup S M3x8 SR

Taptite bind B M4x10

Taptite cup S

M3x8 SR

Positioning plate

calking ASSY

Taptite bind B M4x10

Positioning plate calking ASSY

Taptite cup S M3x8 SR

Positioning plate

calking ASSY

Taptite cup S M3x8 SR

Taptite cup S

M3x8 SR

Positioning plate

calking ASSY
