3-164

Confidential

12.9 T2TT unit

(1) Remove the taptite bind B M4x10 screw to remove the air duct. Pull out the two

harnesses through the air duct hole.

(2) Remove the screw pan (S/P washer) M3.5x6 screw and screw cup M3x8 (black) screw

to remove the TT ground plate right.

(3) Remove the two screw cup M3x8 (black) screws to remove the TT ground plate rear.

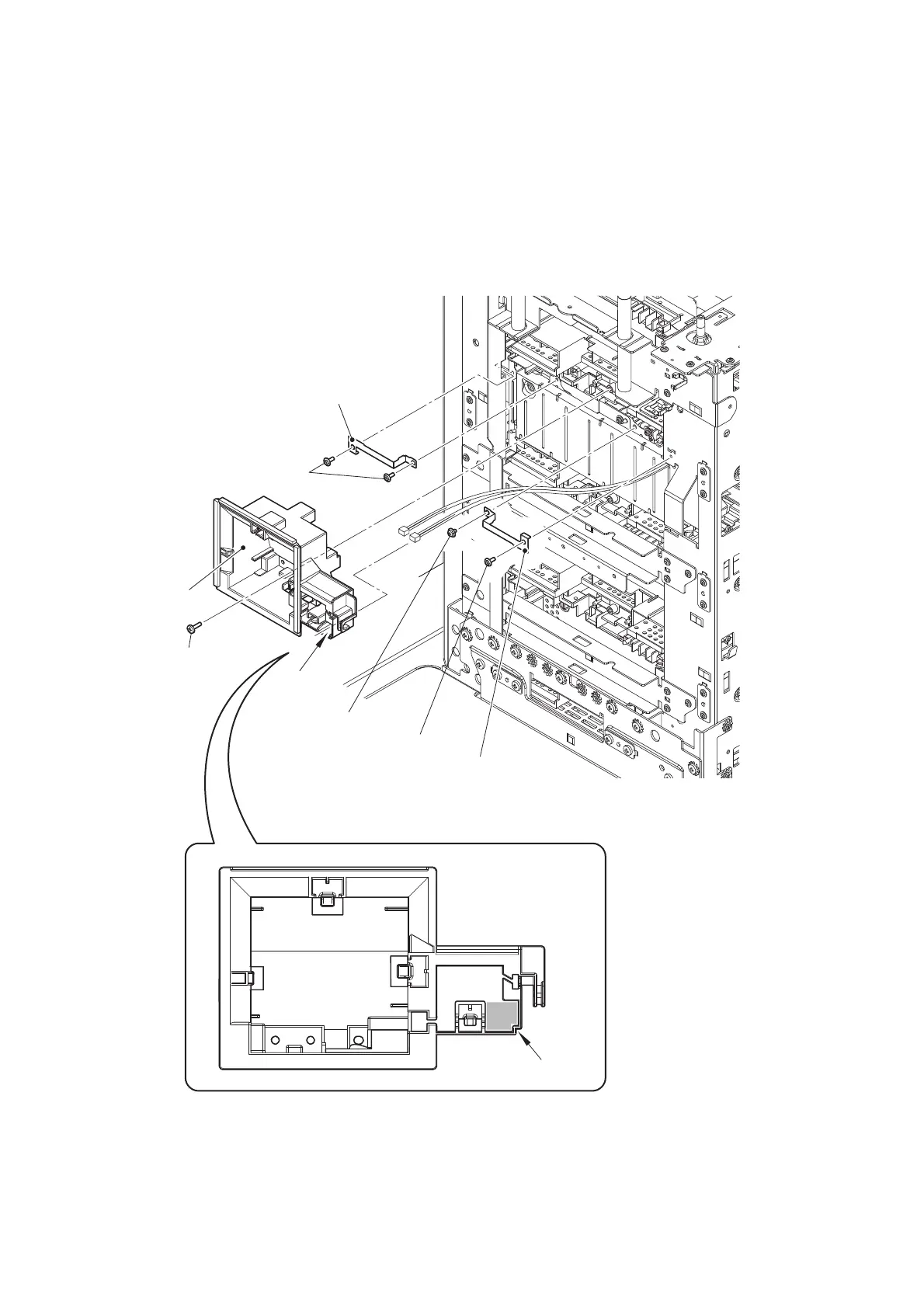

Fig. 3-160

TT ground plate rear

Air duct

Taptite bind B

M4x10

Screw pan (S/P washer)

M3.5x6

Screw cup M3x8 (black)

TT ground plate right

Screw cup M3x8 (black)

Hole
