3-163

Confidential

(4) Remove the collar 6 to remove the SPUR gear idle TT Z53 from the motor plate calking

ASSY.

(5) Remove the helical gear TT Z88/Z41 from the motor plate calking ASSY.

(6) Remove the three screw bind M3x4 screws to remove the TT motor from the motor plate

calking ASSY.

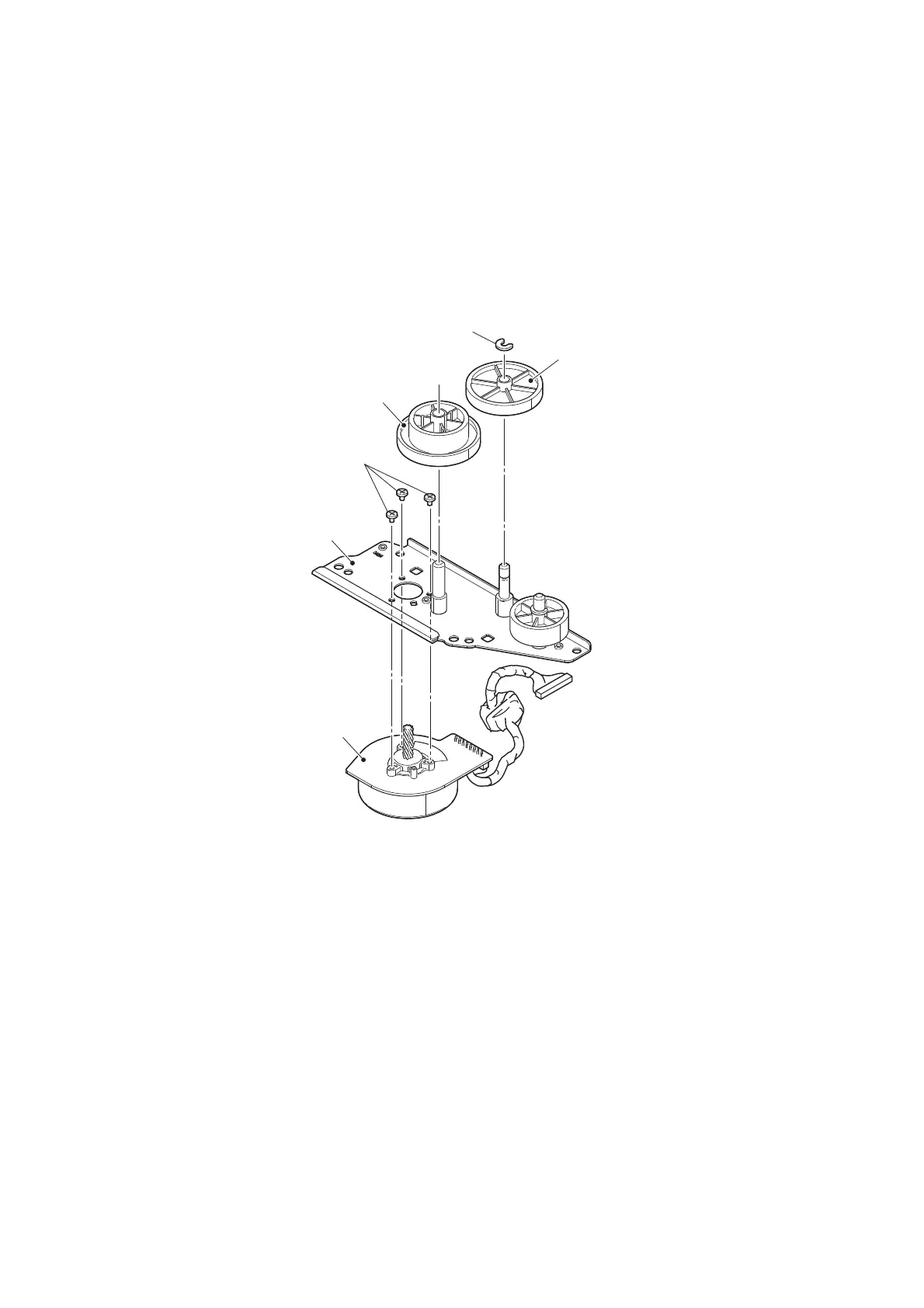

Fig. 3-159

SPUR gear idle TT Z53

Collar 6

Helical gear TT Z88/Z41

Screw bind M3x4

Motor plate calking ASSY

TT motor
