3-131

Confidential

11.2 MX relay PCB ASSY

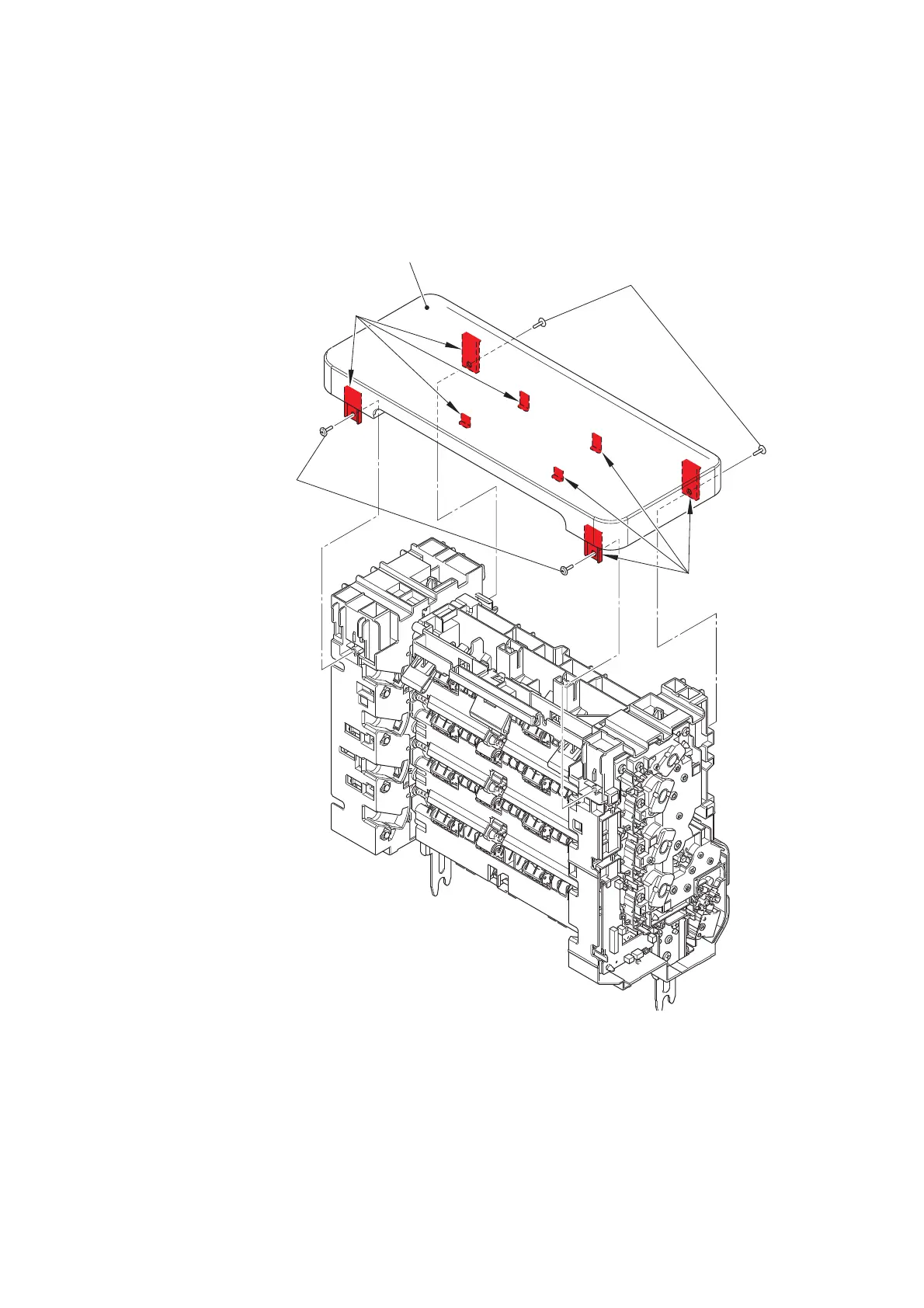

(1) Remove the four taptite cup B M3x10 screws. Release each hook, and remove the top

cover MX.

Fig. 3-123

Taptite cup B M3x10

Top cover MX

Hooks

Taptite cup B M3x10

Hooks
