3-162

Confidential

12.8 TT motor

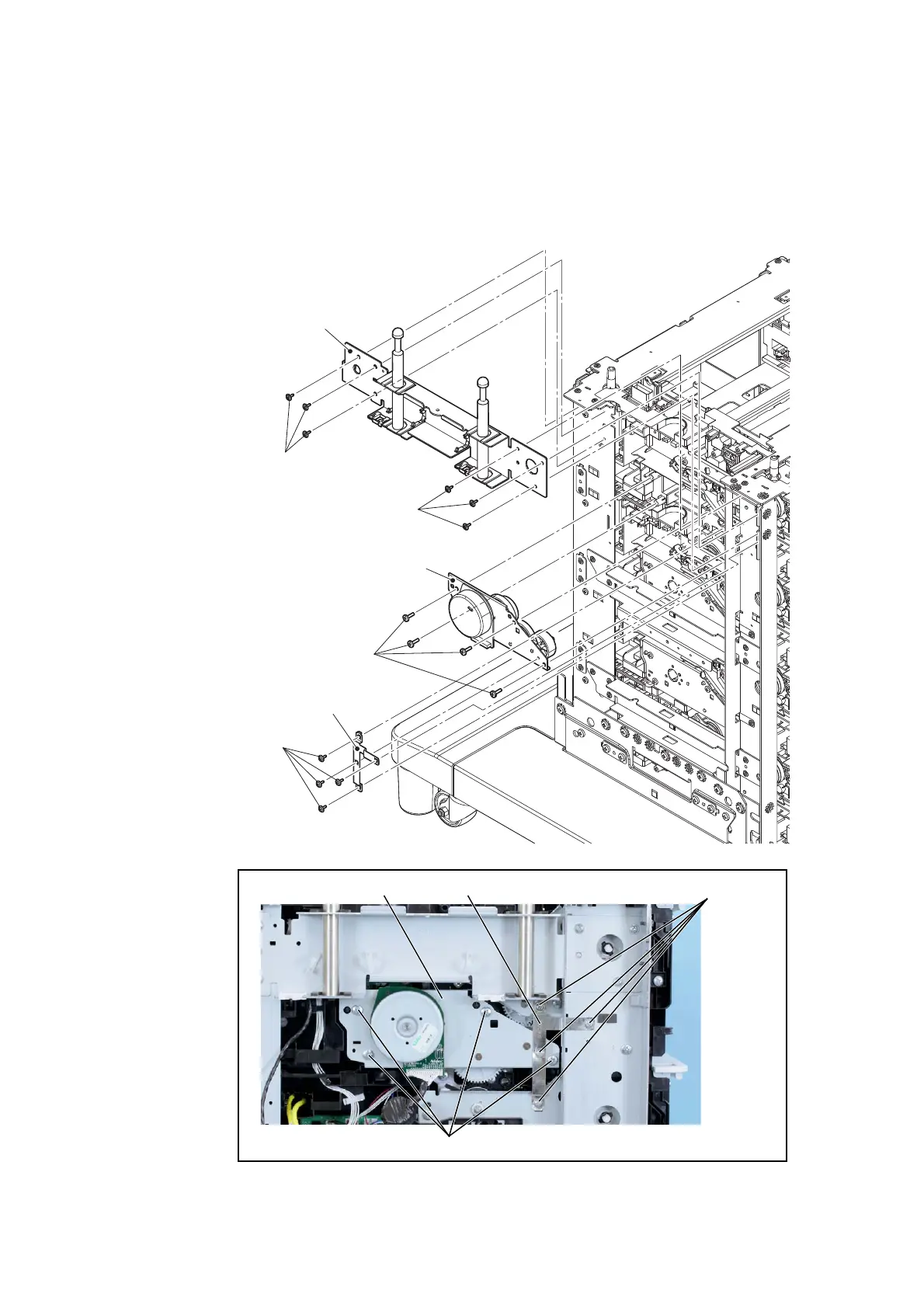

(1) Remove the six taptite cup S M3x8 SR screws to remove the reinforcing plate top L.

(2) Remove the four taptite cup S M3x8 SR screws to remove the FG plate L.

(3) Remove the four taptite bind B M4x10 screws to remove the motor plate calking ASSY.

Fig. 3-158

Taptite cup S M3x8 SR

Reinforcing plate top L

Motor plate calking ASSY

Taptite bind B M4x10

FG plate L

Taptite cup S M3x8 SR

FG plate LMotor plate calking ASSY

Taptite cup S M3x8 SR

Taptite bind B M4x10
