7-15

Confidential

2.5 PF kit 1

(1) Release the two hooks on the T1 separation pad ASSY from paper tray.

(2) Push both arms on the T1 separation pad ASSY inwards to remove both pins, and

remove the T1 separation pad ASSY from the paper tray.

(3) Remove the T1 separation pad spring from the T1 separation pad ASSY.

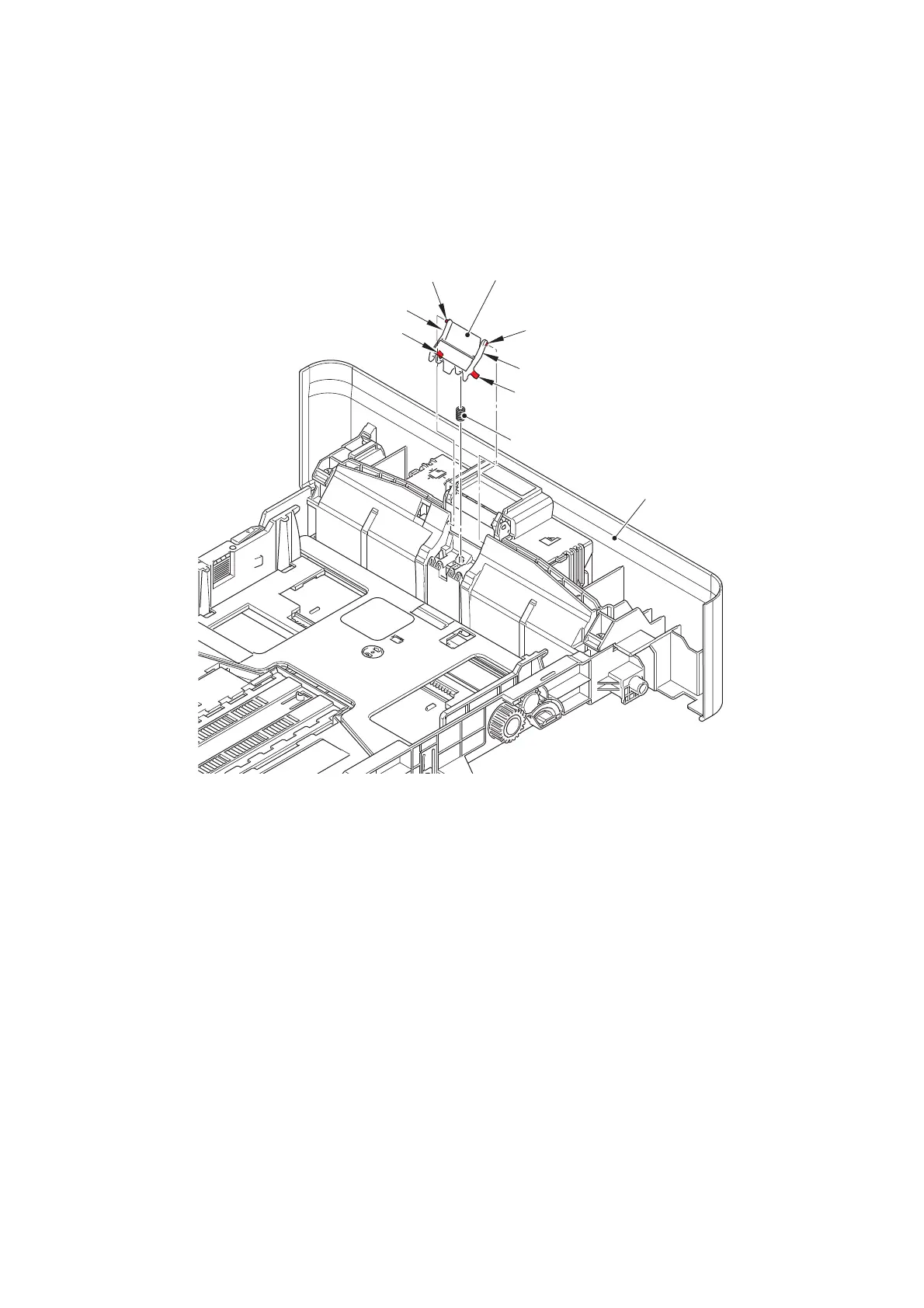

Fig. 7-20

T1 separation pad ASSY

Hook

Arm

T1 separation pad spring

Paper tray

Hook

Arm

Default Chapter4
- Table of Contents4
