3-96

Confidential

9.33 High-voltage power supply PCB ASSY

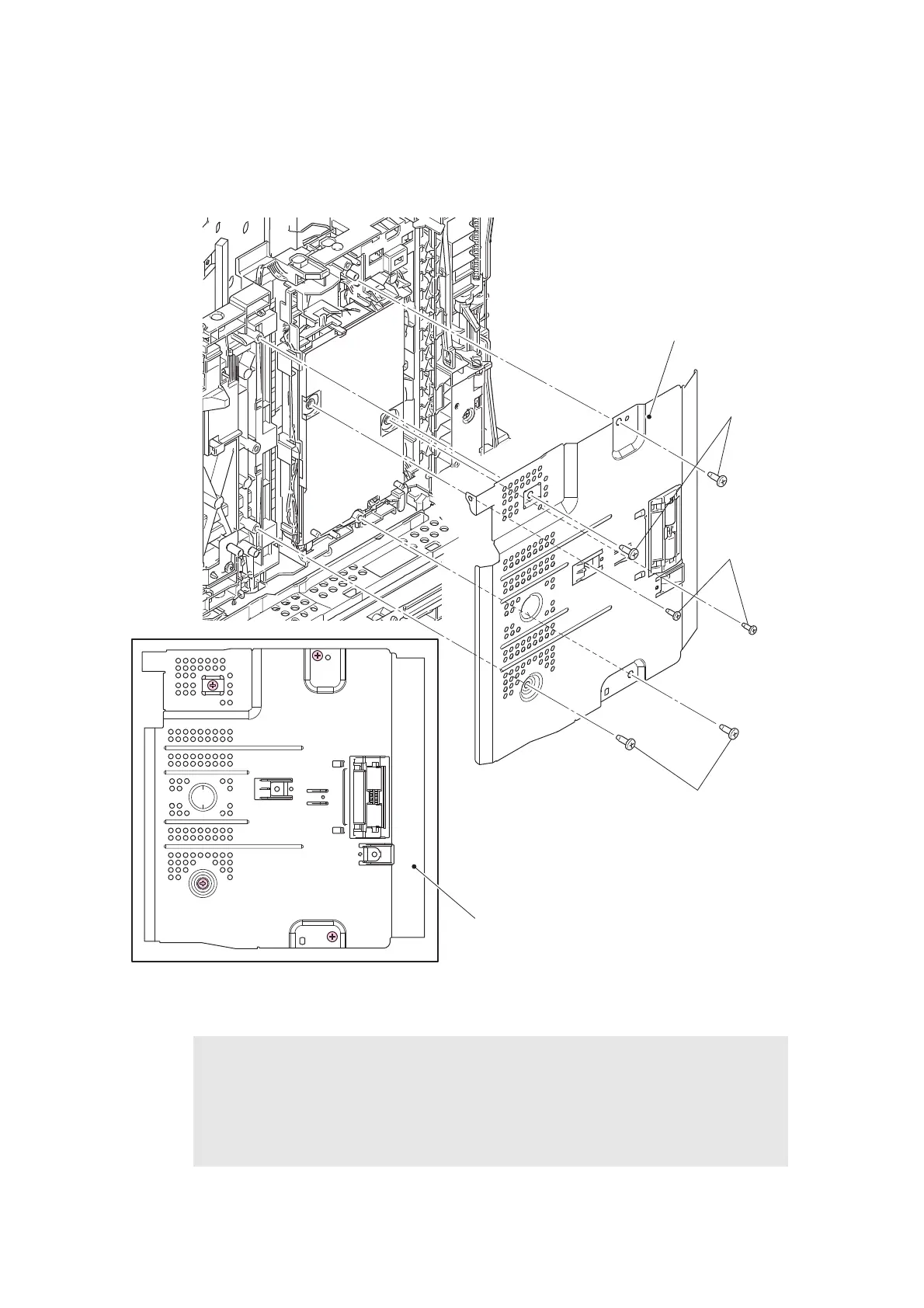

(1) Remove the two screw pan (S/P washer) M3x12 DB screws and the four taptite bind B

M4x12 screws to remove the base plate.

Fig. 3-85

Assembling Note:

• Carefully attach the base plate, avoiding harnesses and flat cables get caught in

the base plate.

• When securing the base plate with screws, tighten the screws in the sequence of

the numbers engraved on the base plate.

Base plate

Screw pan

(S/P washer)

M3x12 DB

Taptite bind B M4x12

Base plate

Taptite bind

B M4x12
