3-83
Confidential
9.22 Paper feed motor
(1) Remove the eight taptite bind B M4x12 screws, and remove the drive sub ASSY from
the main frame L ASSY.

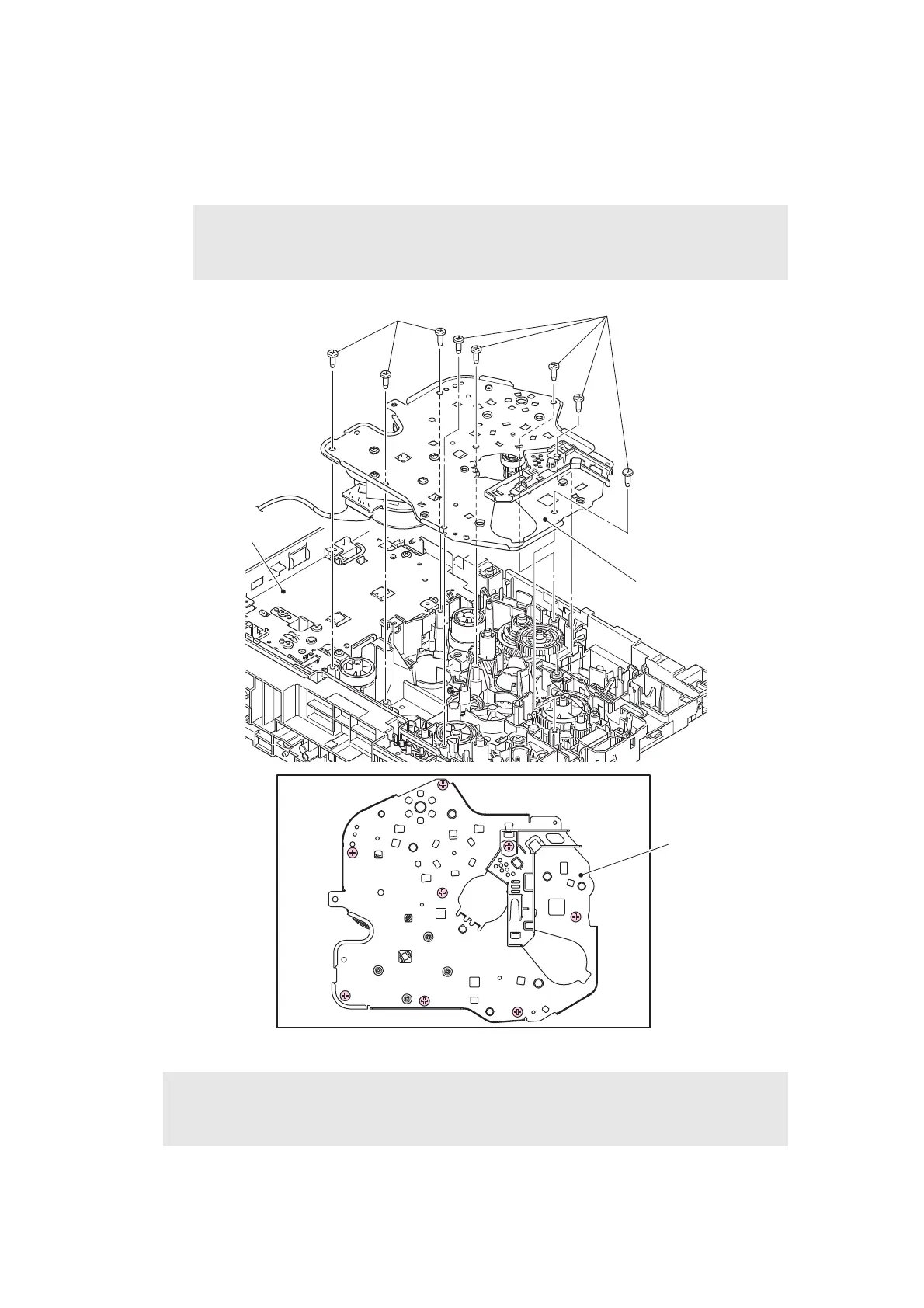

Fig. 3-72
Note:
• When removing the drive sub ASSY, be careful not to damage the shaft of the
drive sub ASSY.
Assembling Note:
• When securing the drive sub ASSY with screws, tighten the screws in the sequence of
the numbers engraved on the drive sub ASSY.
Taptite bind B M4x12
Taptite bind B M4x12
Main frame L ASSY
Drive sub ASSY
Drive sub ASSY
5
1
2
8
6
7
3
4
