3-126

Confidential

11. DISASSEMBLY PROCEDURE (MX UNIT)

11.1 Bin ASSY A/B

(1) Turn the 2nd layer and the 4th layer of the bin ASSY A upside and then remove them.

(2) Remove the bin number label 2 from the 2nd layer of the bin ASSY A.

(3) Remove the bin number label 4 from the 4th layer of the bin ASSY A.

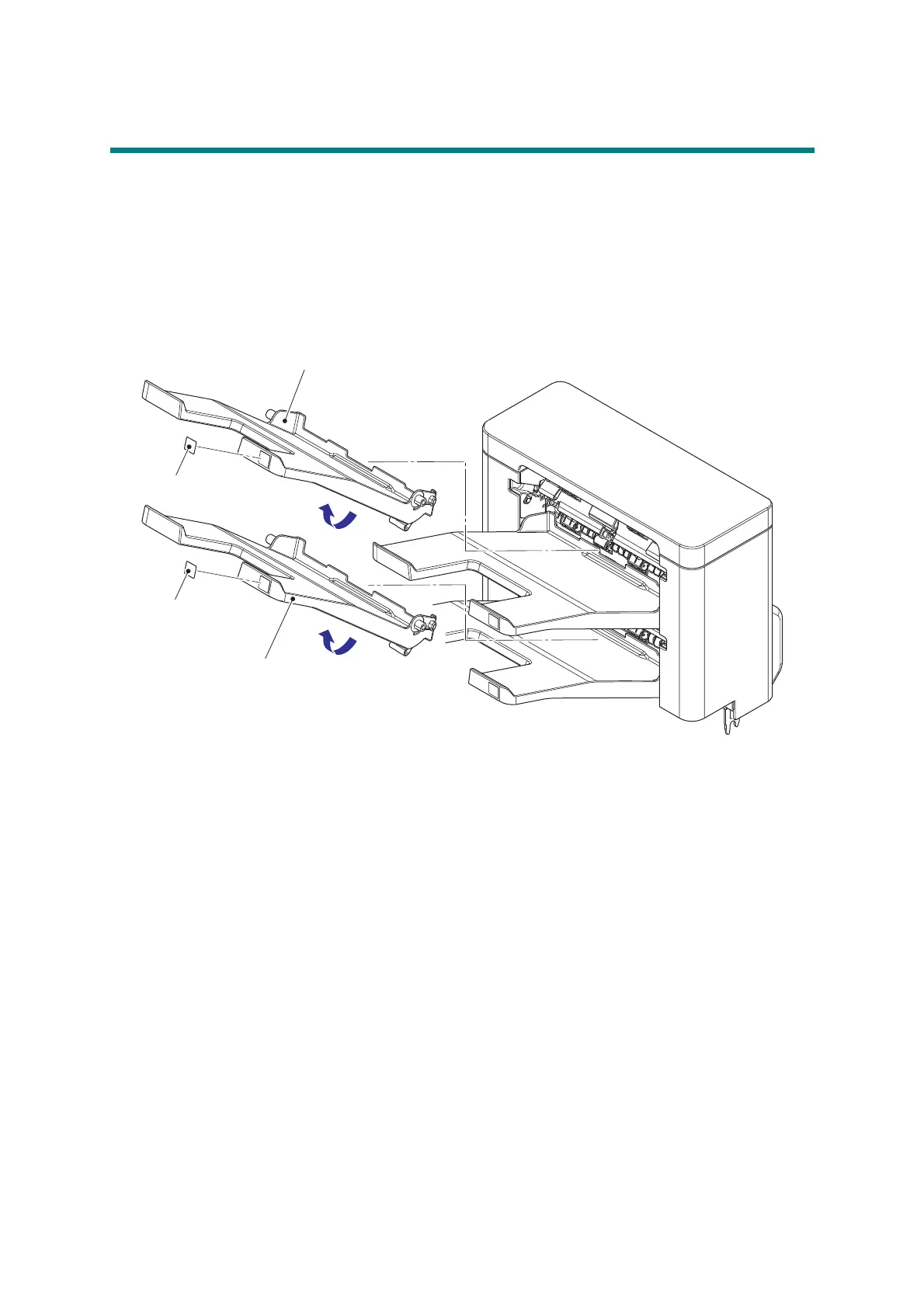

Fig. 3-118

Bin ASSY A (the 4th layer)

Bin number label 4

Bin number

label 2

Bin ASSY A (the 2nd layer)
