12.15 TT relay PCB ASSY (Common to all TT)

(1) Loosen the clamp and release the TT relay harness from the securing fixtures. Pull out

the TT relay harness through the frame L hole.

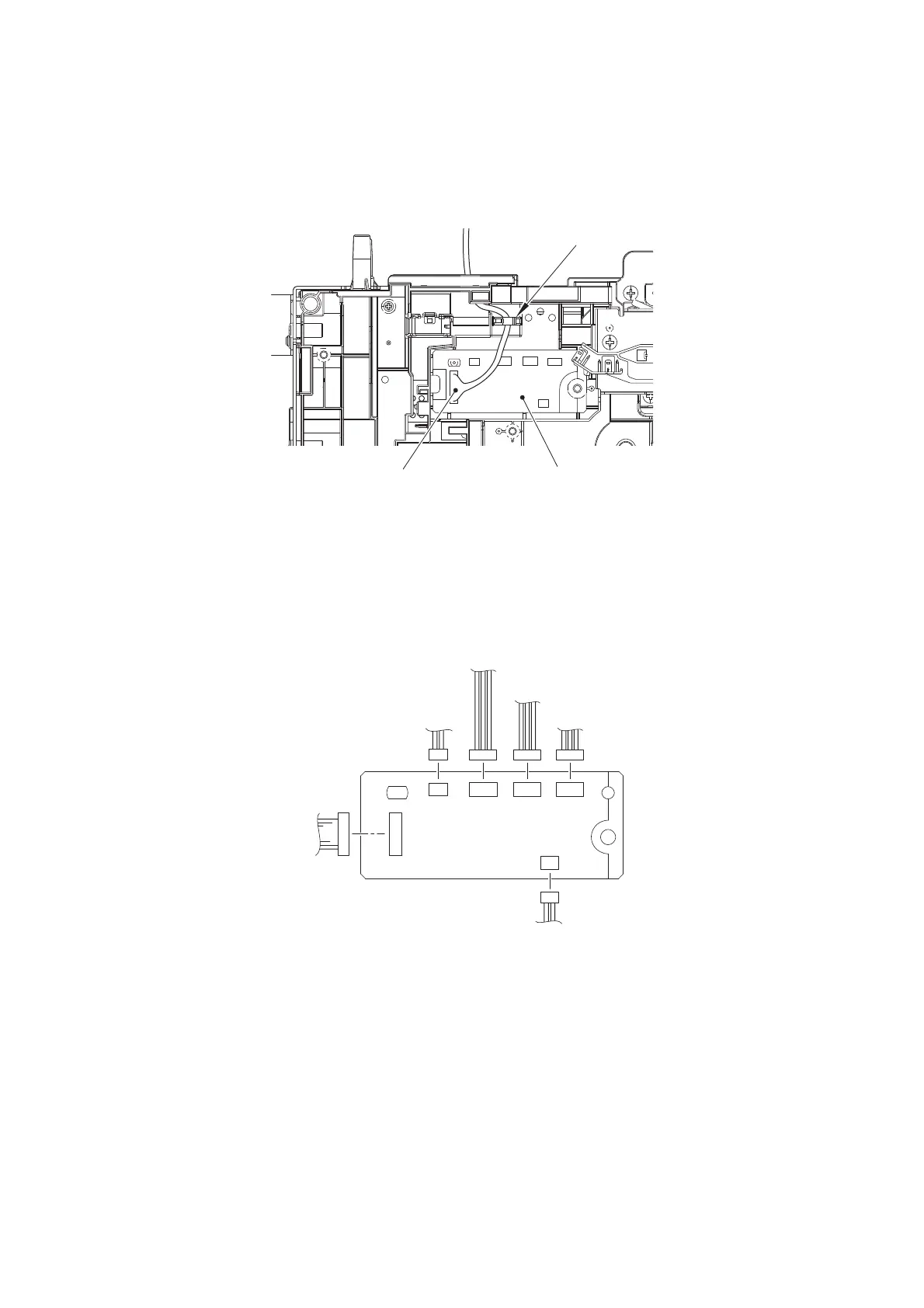

Fig. 3-171

Harness routing: Refer to “13. Left side of the TT”.

(2) Disconnect all harnesses connected to the TT relay PCB ASSY.

Fig. 3-172

Clamp

TT relay PCB ASSY

TT relay harness

TT relay PCB ASSY

TT pickup clutch harness

TT paper empty sensor harness

TT paper feed sensor harness

TT jam sensor harness

TT relay harness

TT release clutch harness

(T3, T4, T5 only)
