3-38

Confidential

9. DISASSEMBLY PROCEDURE

9.1 Preparation

 Disconnecting Cables and removing Accessories

Prior to proceeding with the disassembly procedure,

(1) Disconnect the following:

•AC cord

• USB cable (if connected)

• LAN cable (if connected)

(2) Remove the following:

• Paper tray

• Toner cartridge and drum unit

• Duplex tray

• LAN port cap

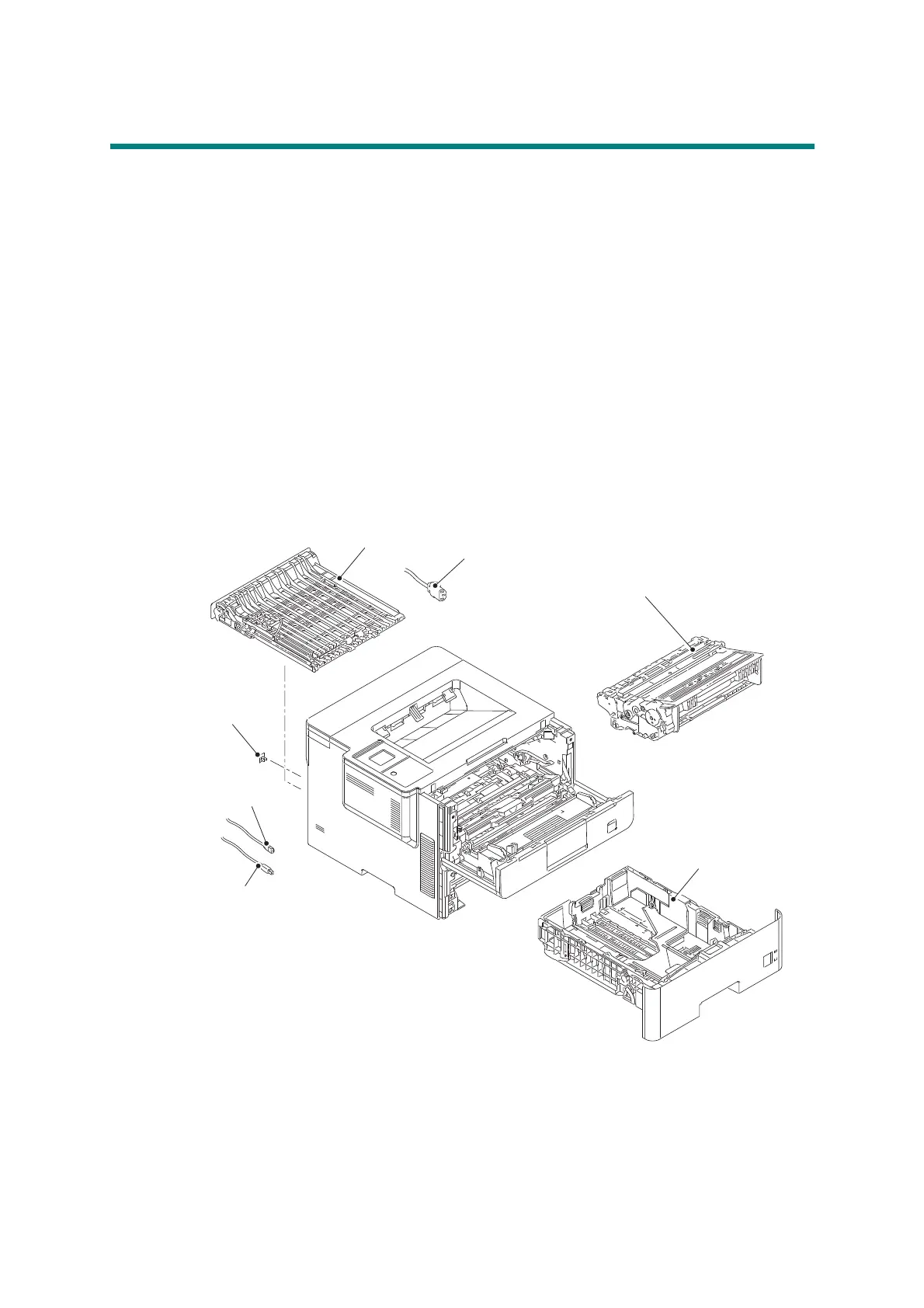

Fig. 3-16

Paper tray

Toner cartridge and drum unit

Duplex tray

AC cord

LAN port cap

LAN cable

USB cable
