3-69

Confidential

9.14 PF roller holder ASSY

(1) Push the link arm in the direction of the arrow A, and turn the PF roller holder ASSY to

remove the boss.

(2) Slide the PF roller holder ASSY in the direction of the arrow B to remove it from the

shaft, and remove the PF roller holder ASSY.

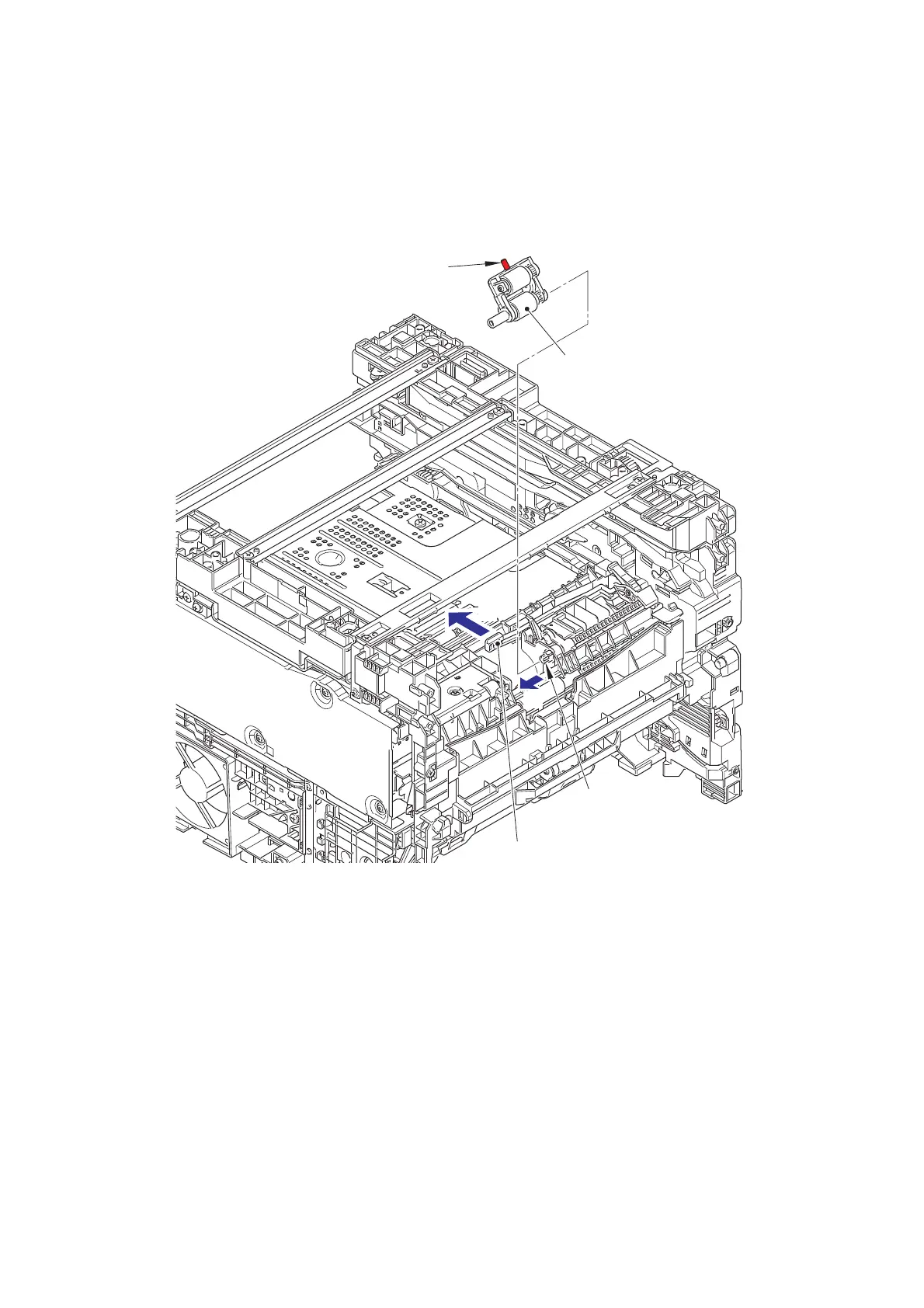

Fig. 3-57

PF roller holder ASSY

Boss

Shaft

Link arm
