3-68

Confidential

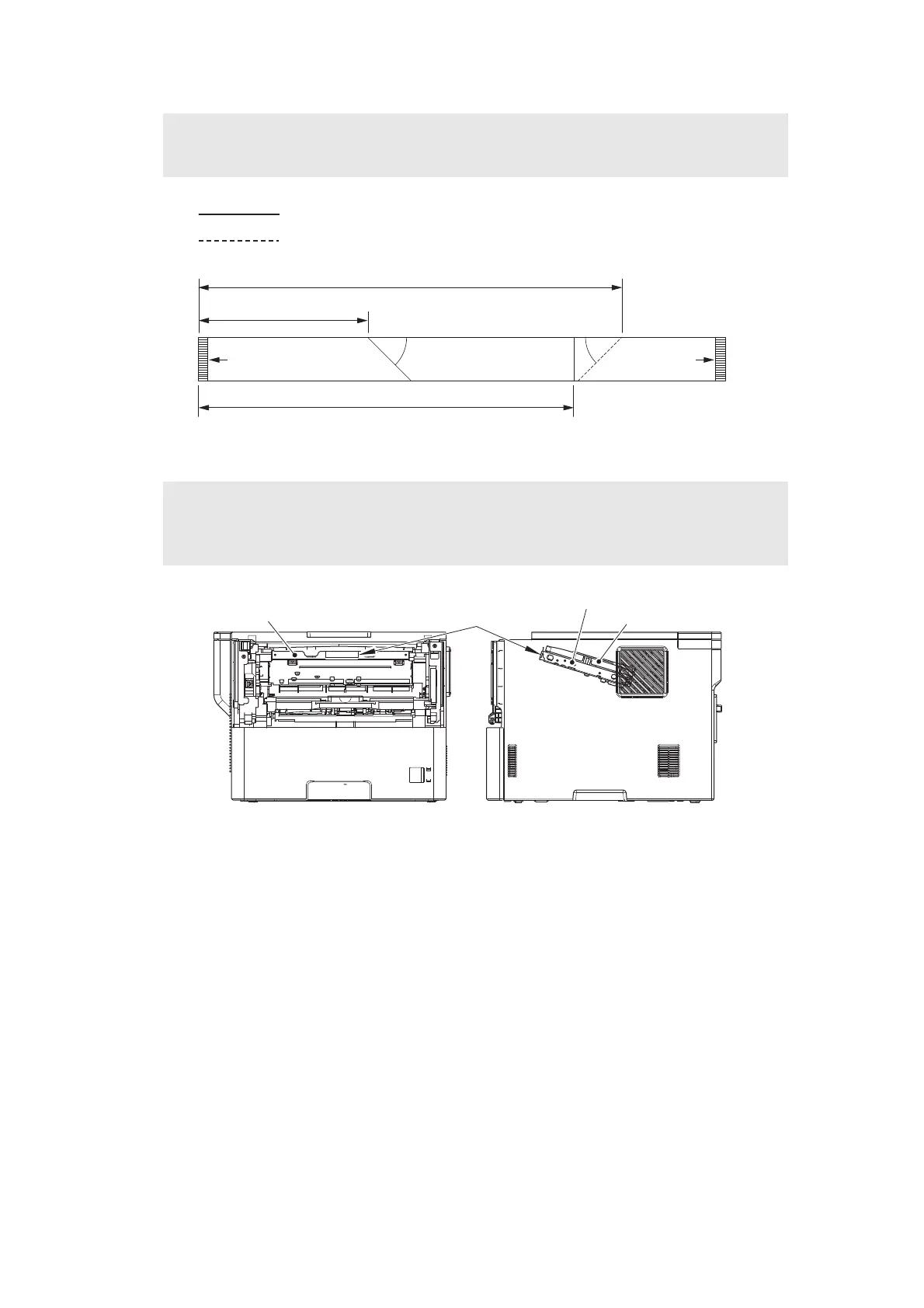

Fig. 3-55

< Location of the laser serial number on the laser unit >

Fig. 3-56

Assembling Note:

• Fold the laser unit flat cable at the positions shown in the figure below.

Note:

• Attach the laser serial label to the position (on the laser plate) shown in the figure below

after replacing the laser unit.

Mountain fold

Valley fold

87±1

Main

PCB side

45°

193±1

218±1

Laser unit

side

Conductor Conductor

Laser serial number label

Laser unit

Laser plate
