3-51
Confidential
9.10 Top cover ASSY
■ Touch panel models
9.10.1 Panel PCB ASSY
(1) Disconnect all flat cables from the panel PCB ASSY.

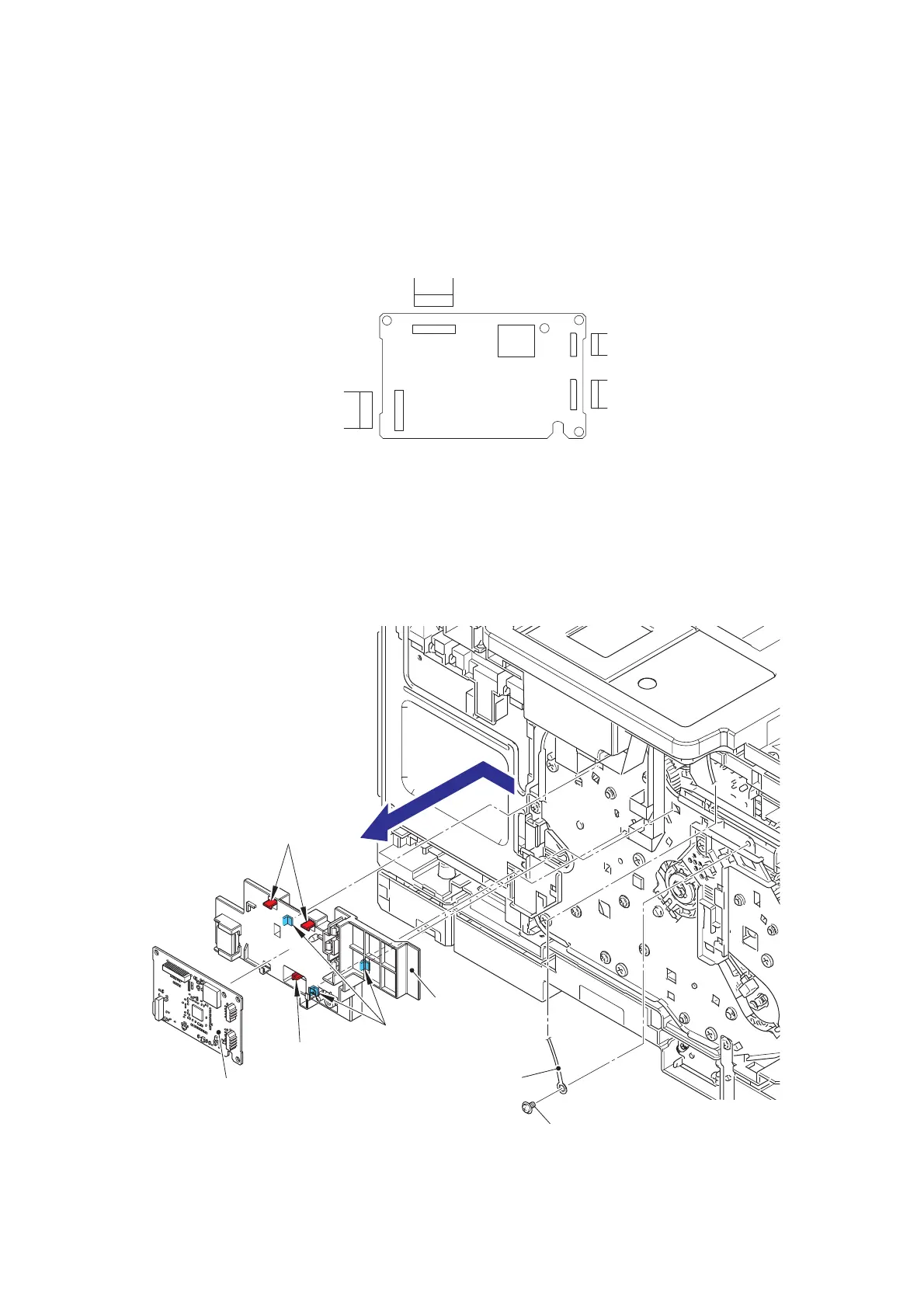

Fig. 3-34
(2) Release the two hooks A, and remove the panel PCB ASSY from the panel FFC holder.
(3) Remove the taptite cup S M3x8 SR screw to disconnect the FG harness A.
(4) Release each flat cable and the FG harness A from the securing fixtures of panel FFC
holder.
(5) Release the hook B, slide the panel FFC holder in the direction of the arrow to release
each tab, and remove the panel FFC holder.
Fig. 3-35
Harness routing: Refer to “1. Left side of the machine (Touch panel models)”.
LCD flat cable
KEY PCB flat cable
NFC flat cable
Panel flat cable
Panel PCB ASSY
Panel PCB ASSY
Panel FFC holder
Hooks A
Tab
Taptite cup S M3x8 SR
FG harness A
Hook B
To Next Page
