3-53
Confidential

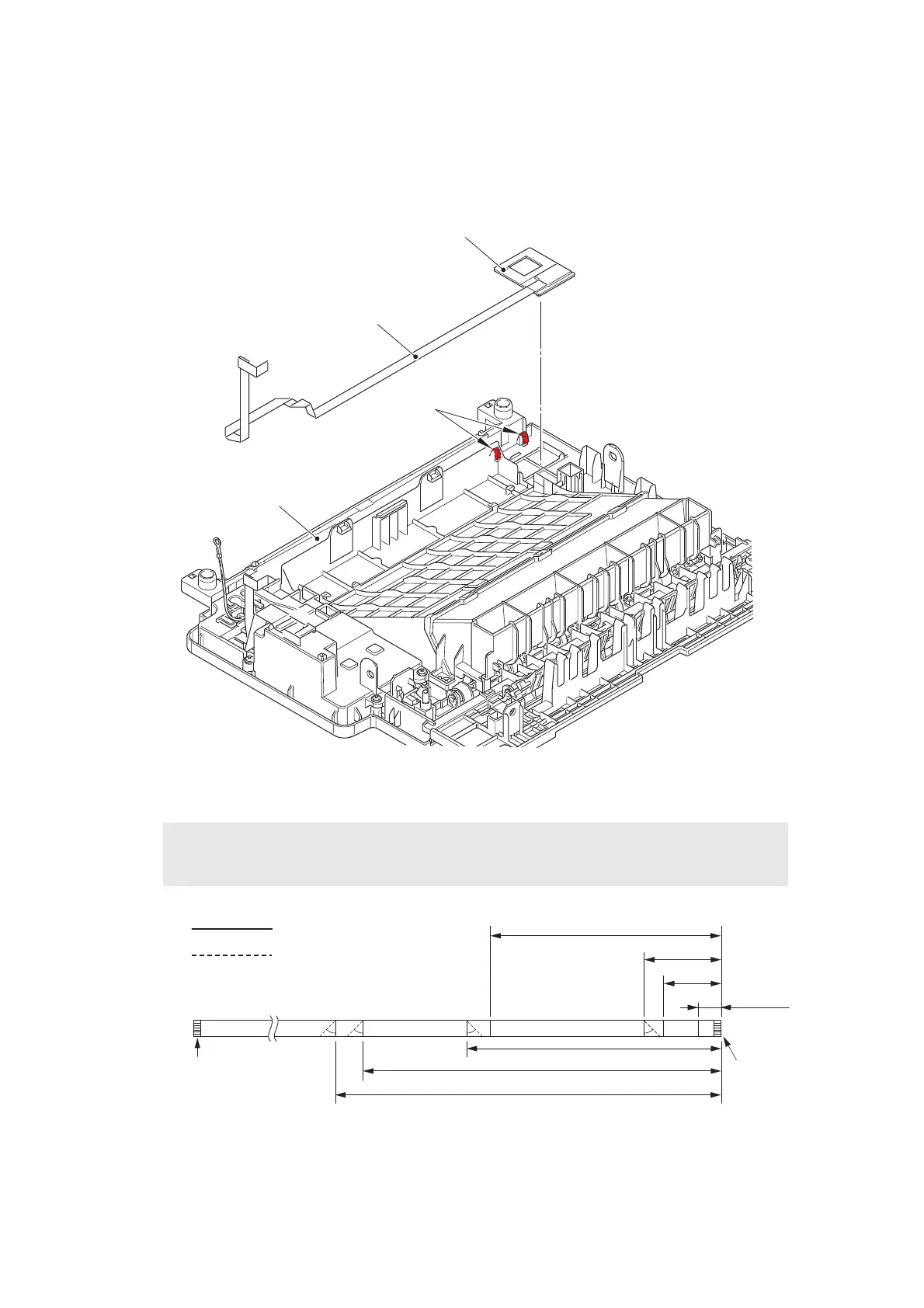

9.10.3 NFC PCB ASSY
(1) Release the NFC flat cable from the securing fixtures.
(2) Release the two hooks, and remove the NFC PCB ASSY from the top cover printed
ASSY.
Fig. 3-37
Harness routing: Refer to
“4. Bottom side of the top cover ASSY (Touch panel models)”
.
Fig. 3-38
Assembling Note:
• Fold the NFC flat cable at the positions shown in the figure below.
NFC PCB ASSY
Hooks
NFC flat cable
Top cover printed ASSY
Mountain fold
Valley fold
12.6±2
45°±2°
31.6±2
42.5±2
127.5±2
140.5±2
198±2
213±2
45°±2° 45°±2° 45°±2°
NFC
PCB
side
Panel PCB
side
Conductor
Conductor
To Next Page
