Brother HL-5590DN Service Manual

3-125
Confidential
10.11 LT paper empty sensor PCB ASSY
(1) Release the hook on the bushing, and pull out the LT separation roller shaft to remove
the LT paper empty actuator.
(2) Release the hook, and remove the LT paper empty actuator cover.
(3) Release the LT paper empty sensor harness from the securing fixtures.
(4) Remove the taptite bind B M3x10 screw, and remove the LT paper empty sensor PCB
ASSY.

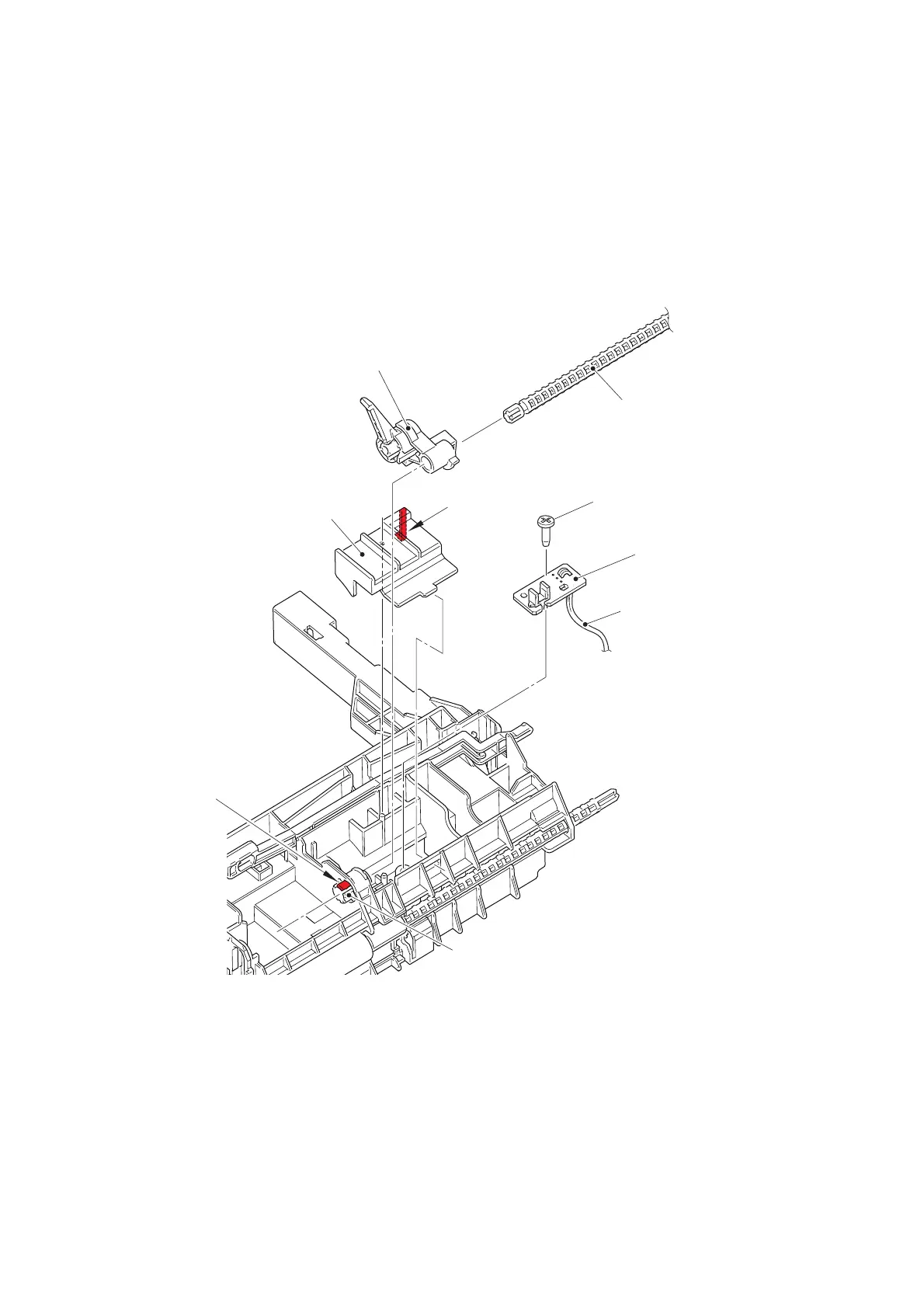

Fig. 3-117
LT paper empty actuator
LT paper empty actuator cover
LT paper empty sensor
PCB ASSY
LT separate roller shaft
LT paper empty sensor
harness
Hook
Hook
Taptite bind B M3x10
Bushing
