3-138

Confidential

11.6 MX connector holder ASSY

(1) Remove the screw pan (S/P washer) M3x12DB screw and the screw cup M3x8 screw

(black) to remove the MX FG harness L.

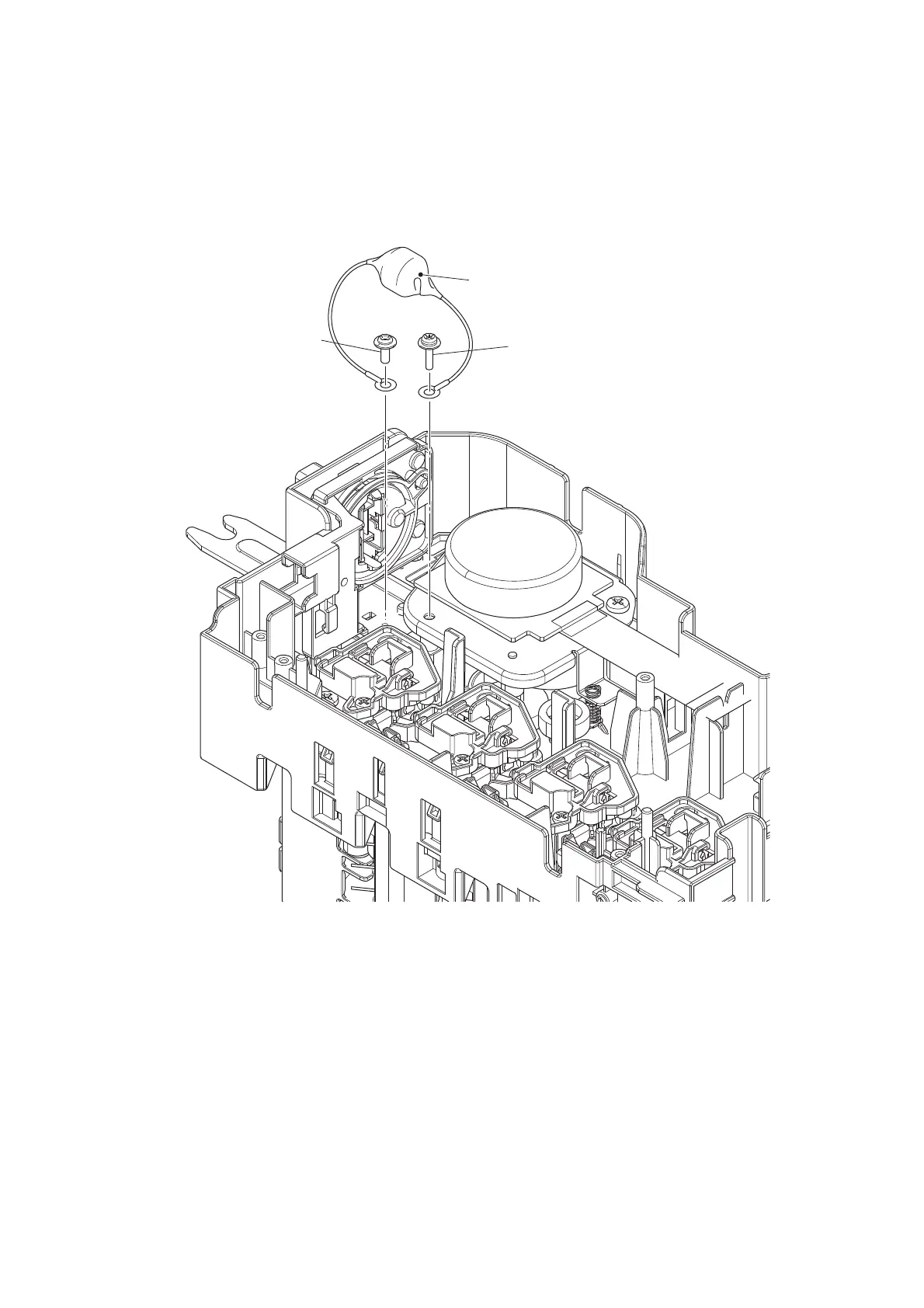

Fig. 3-130

Harness routing: Refer to “9. Left side of the MX (MX control PCB)”.

Screw pan (S/P washer) M3x12DB

Screw cup M3x8 (black)

MX FG harness L
