3-25

Confidential

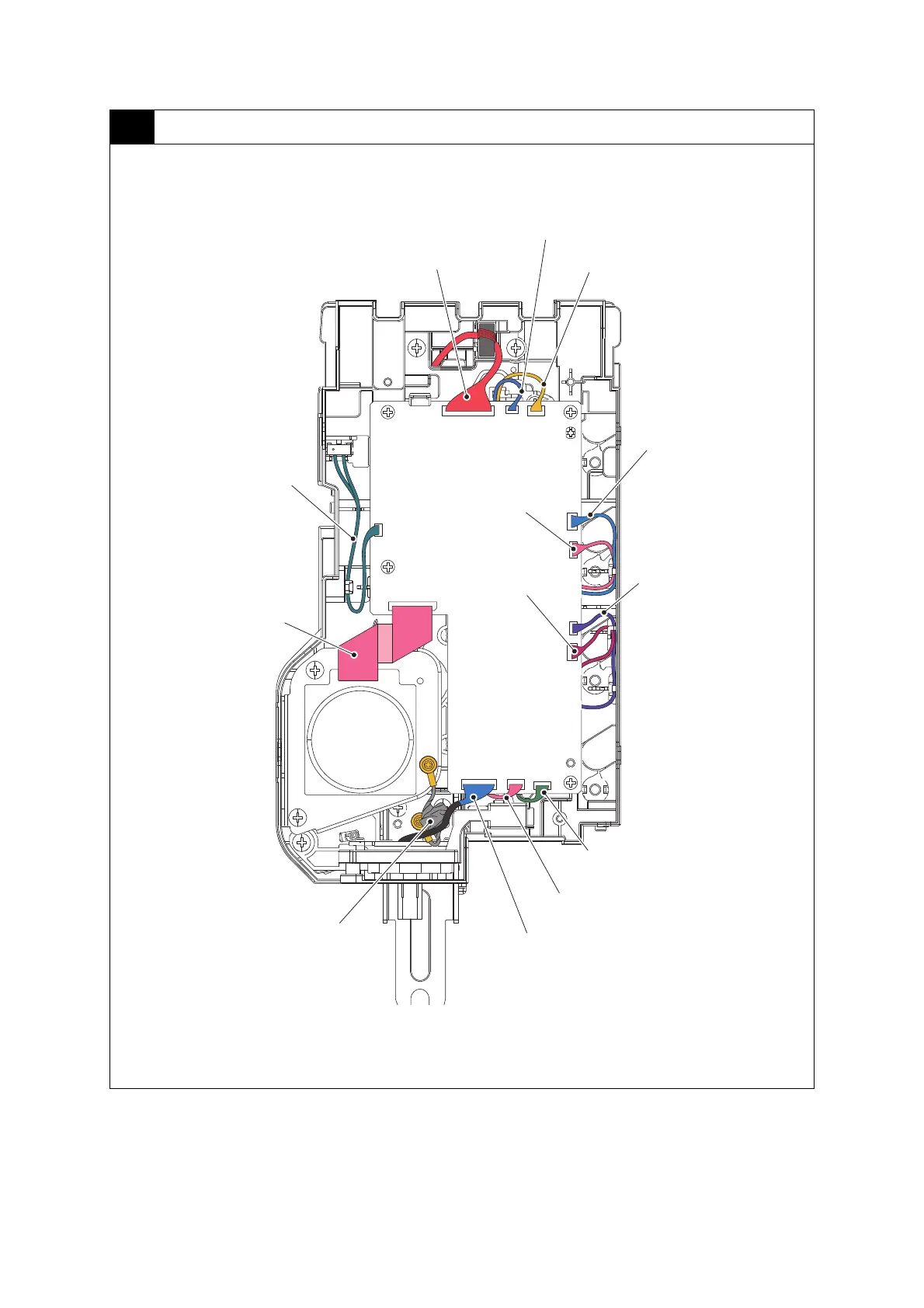

9 Left side of the MX (MX control PCB)

Harness colors are subject to change for some reason.

MX relay PCB harness (WH)

MX 4bin detection sensor harness (WH, BK)

MX 4bin stack sensor harness (WH)

MX 3bin stack sensor

harness (WH)

MX 2bin detection sensor

harness (WH, BK)

MX jam lower harness (WH)

MX 1bin stack sensor harness (WH)

MX control PCB harness (WH)

MX 2bin stack sensor

harness (WH)

MX back cover sensor

harness (WH, BK)

MX motor flat cable

MX FG harness L (WH)

MX jam upper harness (WH)
