12.2 Paper tray

(1) Release the two hooks on the separation pad ASSY from the paper tray.

(2) Push both arms of the separation pad ASSY inwards and release the pins to remove the

separation pad ASSY from the paper tray.

(3) Remove the separation pad spring from the separation pad ASSY.

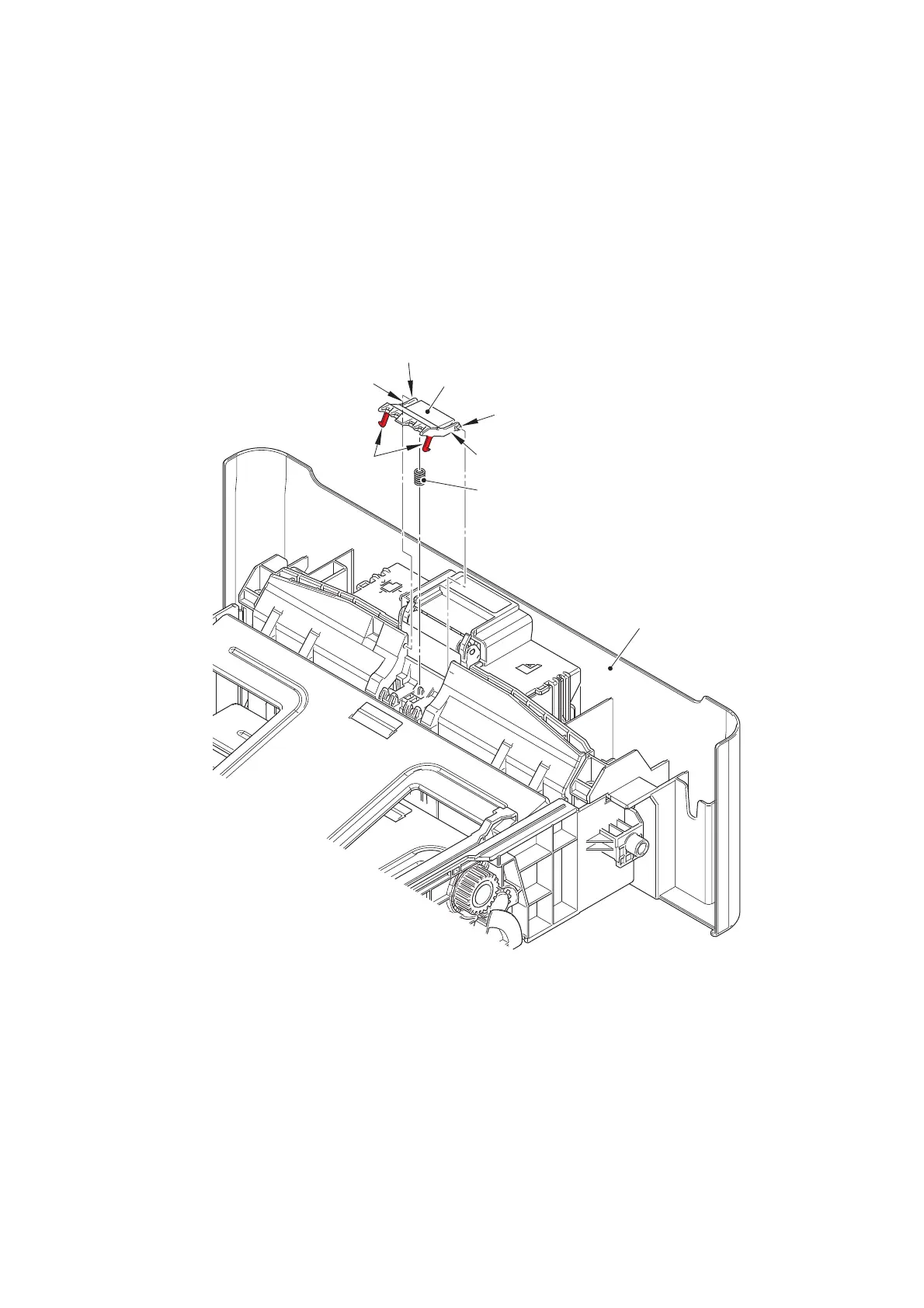

Fig. 3-144

Separation pad ASSY

Arm

Separation pad spring

Paper tray

Arm

Hooks

Default Chapter4
