3-151

Confidential

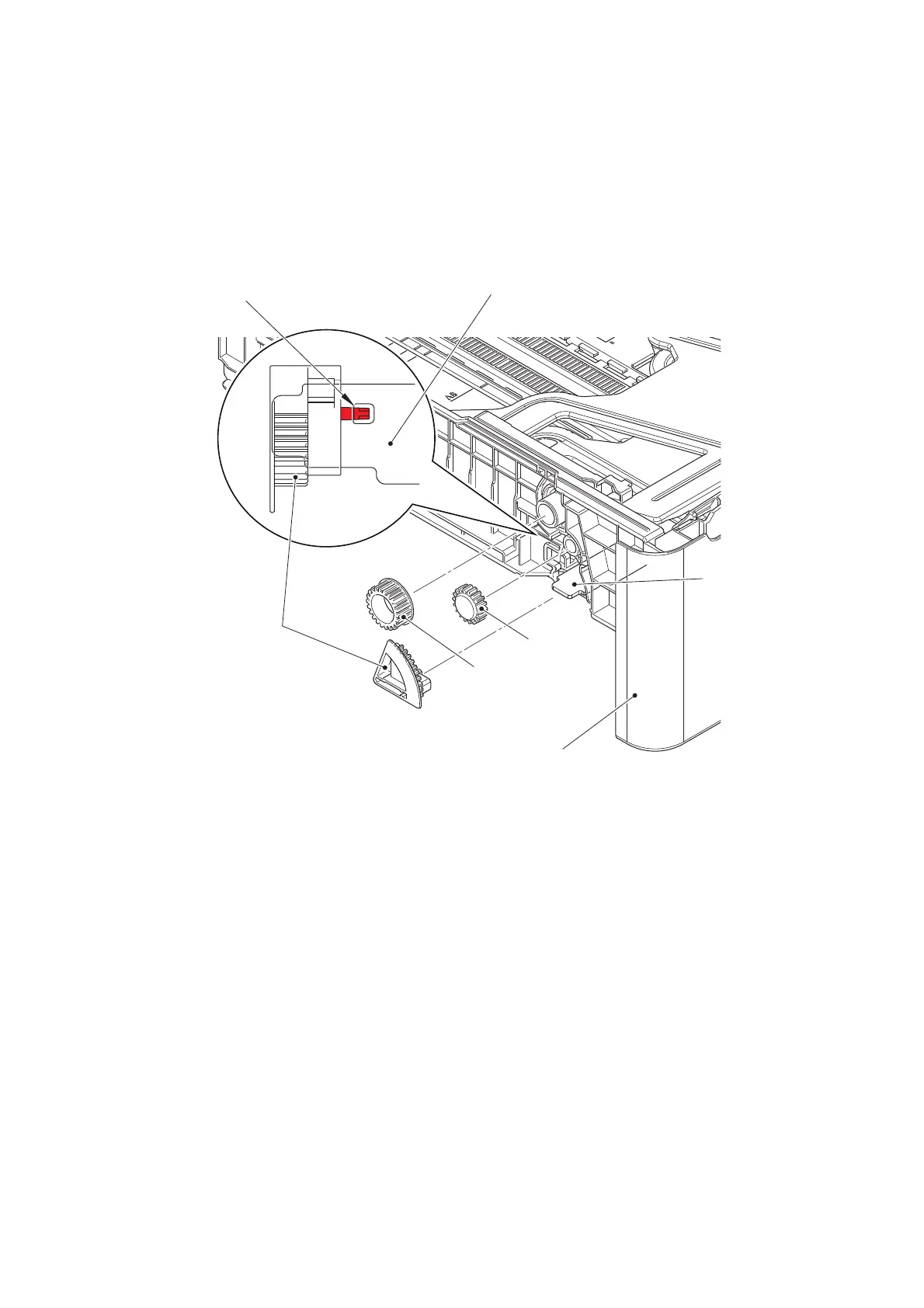

(4) Press the hook on the lift gear Z48M10 while lifting the plate-up plate to remove the lift

gear Z48M10 from the paper tray.

(5) Remove the gear Z22M10 and idle gear 50 Z18M10 from the paper tray.

Fig. 3-145

Gear Z22M10

Idle gear 50 Z18M10

Lift gear Z48M10

Paper tray

Plate-up plate

Plate-up plate

Hook
