3-86

Confidential

9.24 Toner amount detection sensor PCB ASSY

(light reception)

(1) Release the toner amount detection sensor PCB harness (light reception) from the

securing fixtures.

(2) Release the two hooks, and remove the toner amount detection sensor PCB ASSY (light

reception) from the main frame L ASSY.

(3) Release the two hooks, and remove the toner LED holder from the toner amount

detection sensor PCB ASSY (light reception).

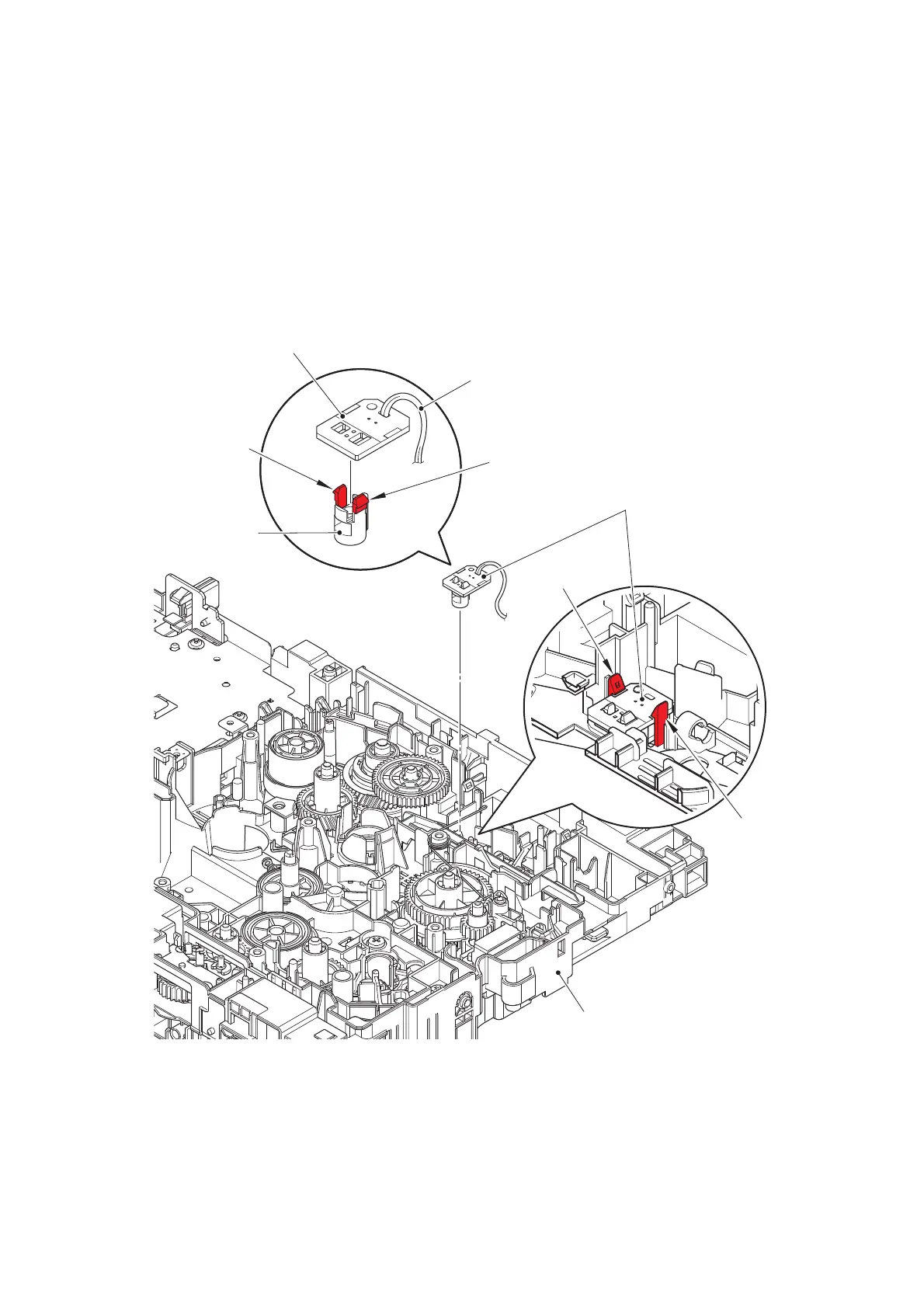

Fig. 3-75

Harness routing: Refer to “3. Left side of the machine (Common to all models)”.

Toner amount detection sensor PCB ASSY (light reception)

Hook

Toner LED

holder

Hook

Toner amount detection sensor

PCB ASSY (light reception)

Toner amount detection sensor

PCB harness (light reception)

Main frame L ASSY

Hook
