3-116
Confidential
10.6 LT control PCB ASSY

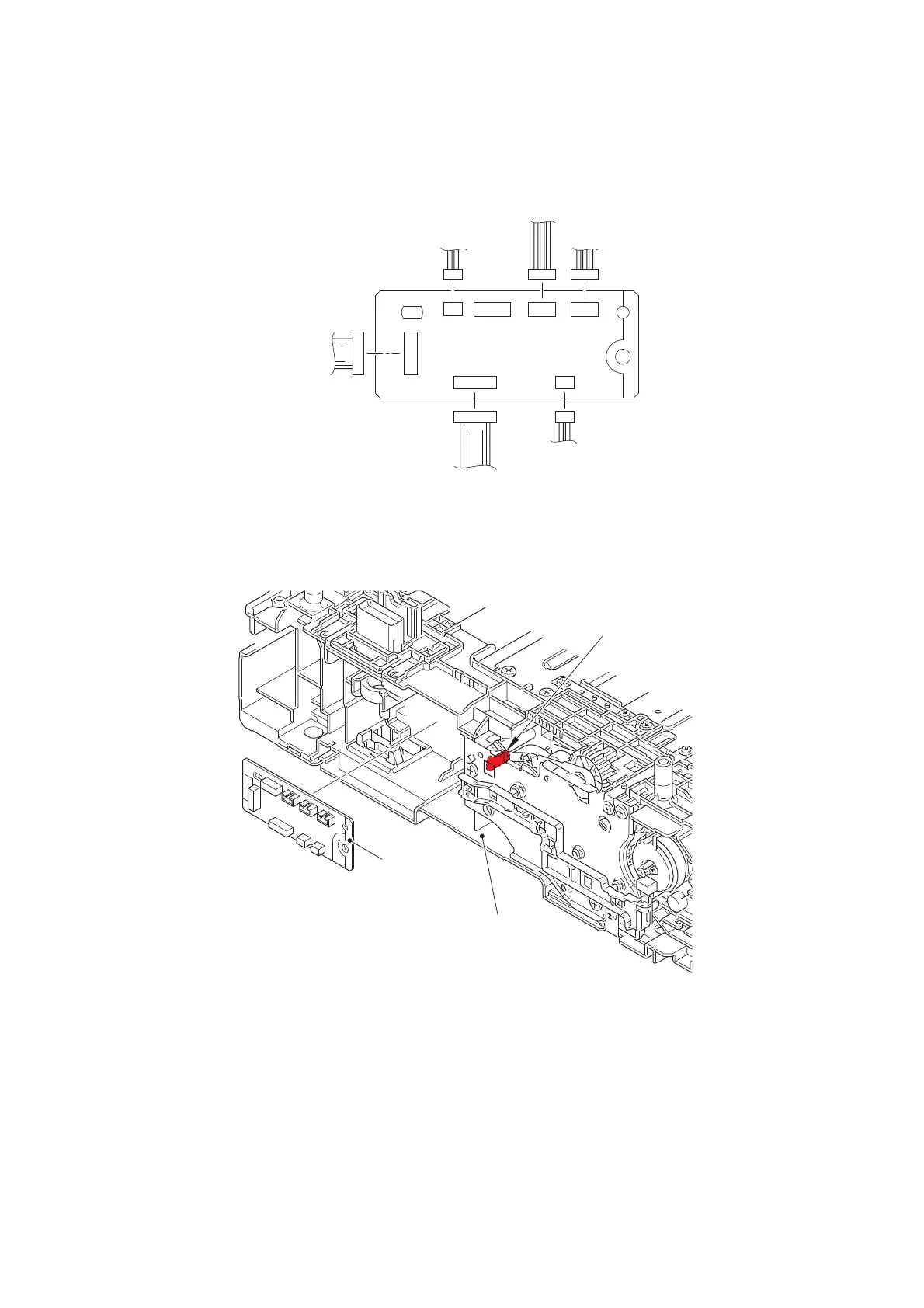

(1) Disconnect all harnesses from the LT control PCB ASSY.
Fig. 3-106
(2) Release the hook, and remove the LT control PCB ASSY from the LT unit.
Fig. 3-107
LT control PCB ASSY
LT release clutch harness
LT paper feed sensor harness
LT paper empty sensor harness
LT pickup clutch harness
LT connector upper harness
LT connector harness
LT control PCB
ASSY
LT unit
Hook
