3-62

Confidential

9.10.9 Top cover printed ASSY

(1) Remove the two taptite bind B M4x12 screws, and remove the inner chute from the top

cover printed ASSY.

(2) Release each hook, and remove the eject cover from the top cover printed ASSY.

(3) Release each boss, and remove the two paper stack levers from the top cover printed

ASSY.

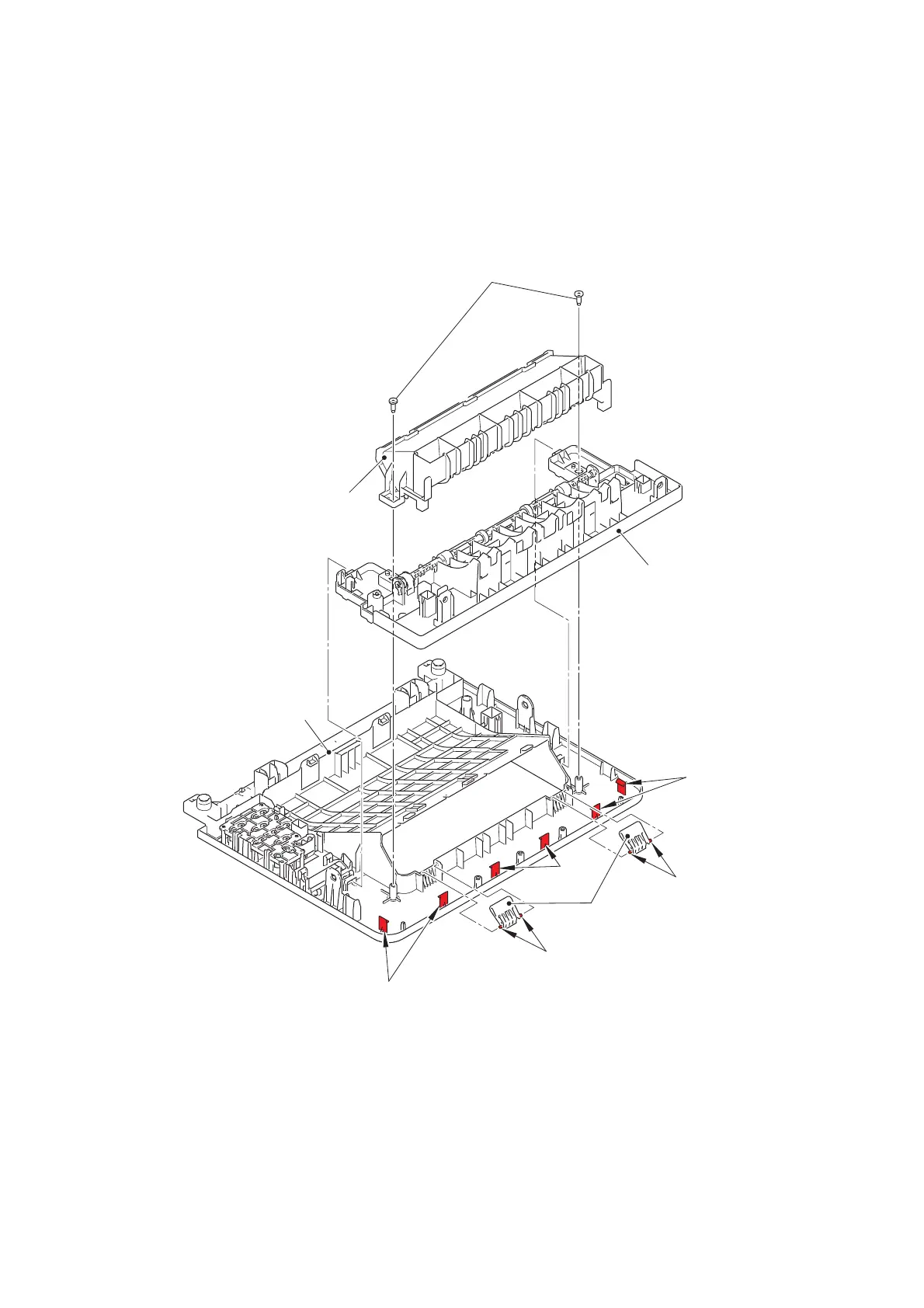

Fig. 3-49

Eject cover

Top cover printed ASSY

Paper stack levers

Inner chute

Bosses

Hooks

Taptite bind B M4x12
