3-127

Confidential

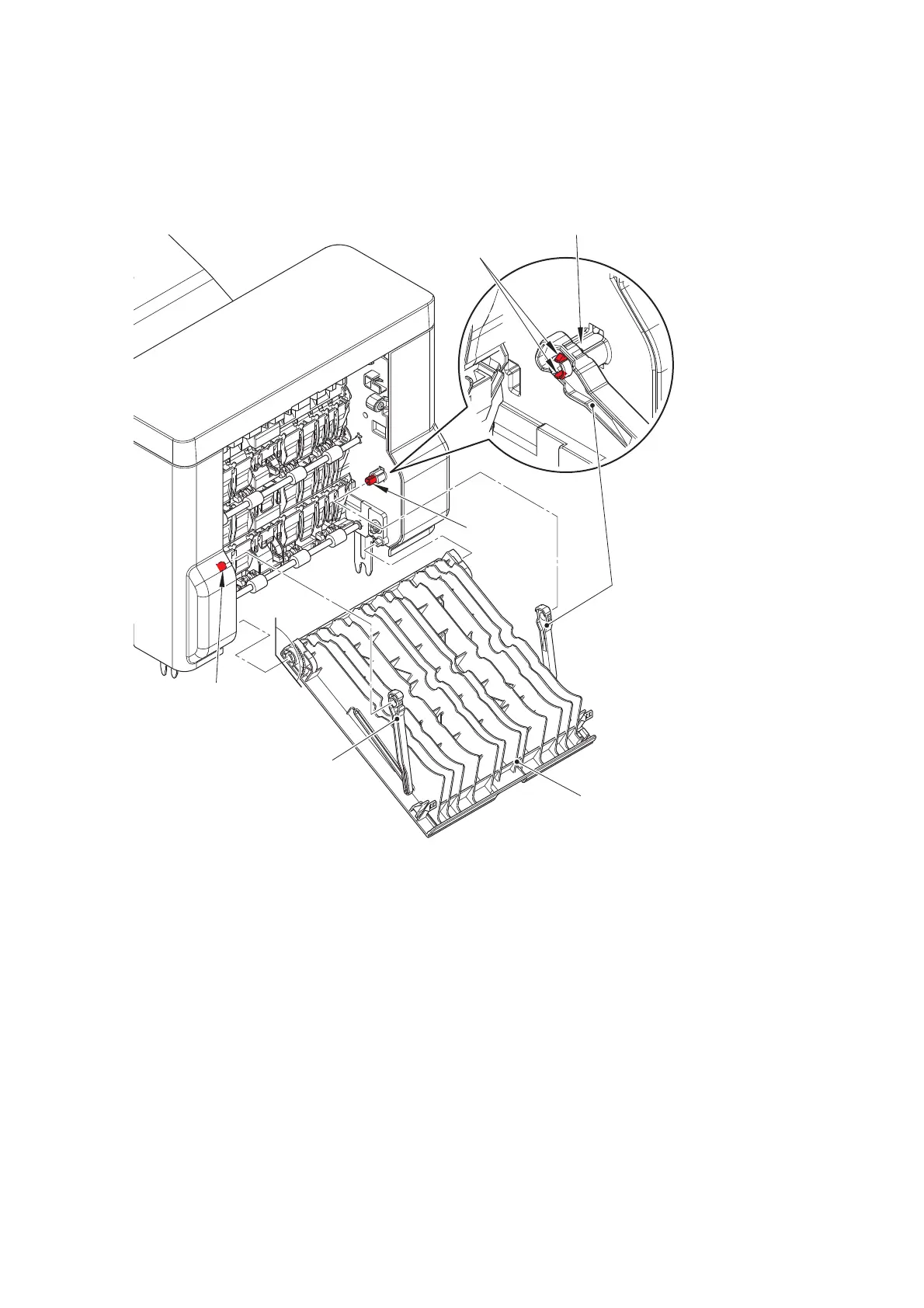

(4) Open the MX back cover, and remove the MX back cover arm from the boss while

pushing the two hooks inward. (2 places)

(5) Turn the MX back cover approximately 120° to remove it from the machine.

Fig. 3-119

MX back cover

MX back cover arm

Boss

MX back cover arm

Boss

Boss

Hooks

120°
