3-128

Confidential

(6) Remove the two taptite cup B M3x10 screws. Release each hook, and remove the side

cover R MX.

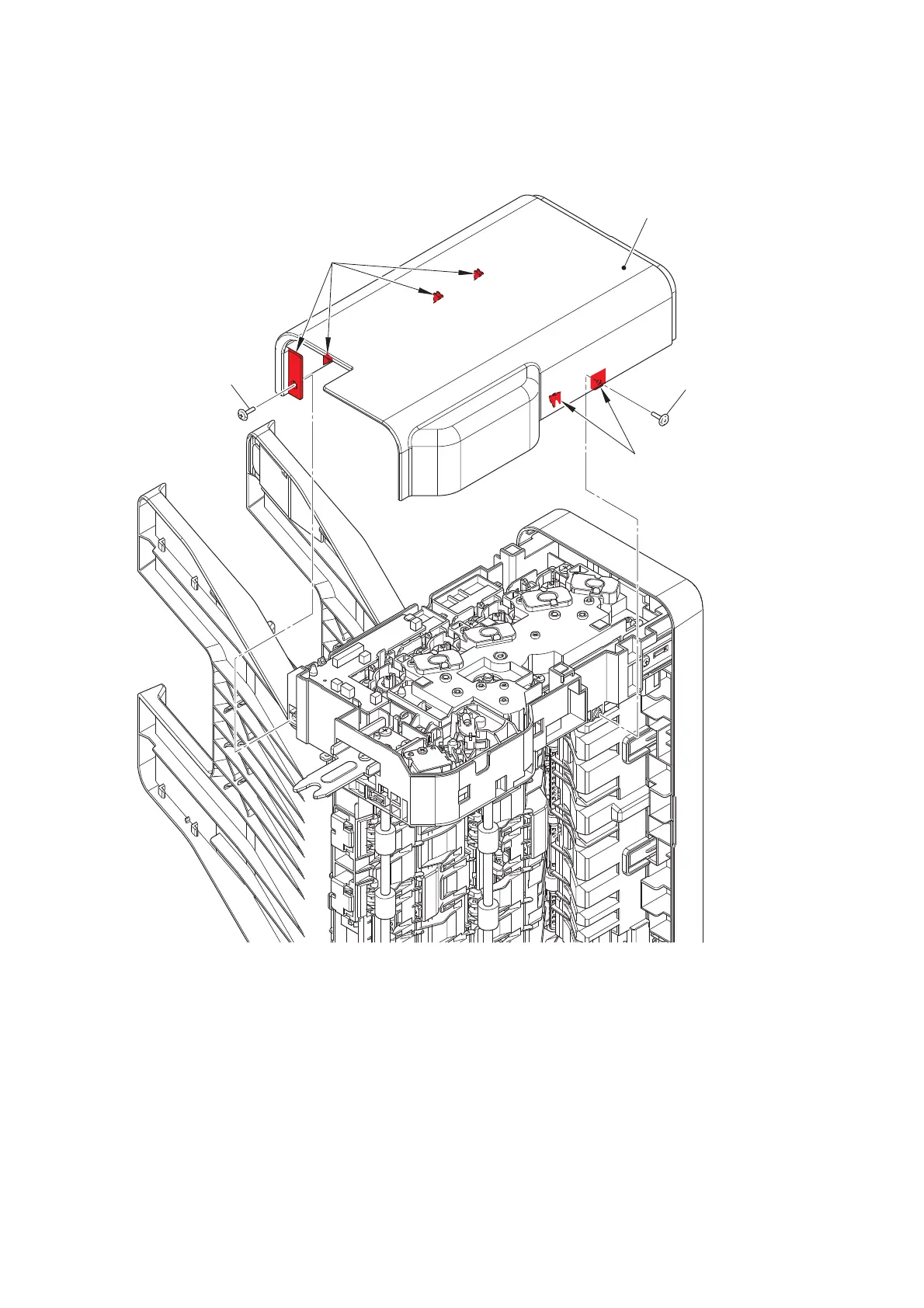

Fig. 3-120

Taptite cup B M3x10

Hooks

Taptite cup B M3x10

Hooks

Side cover R MX
