7-16
Confidential

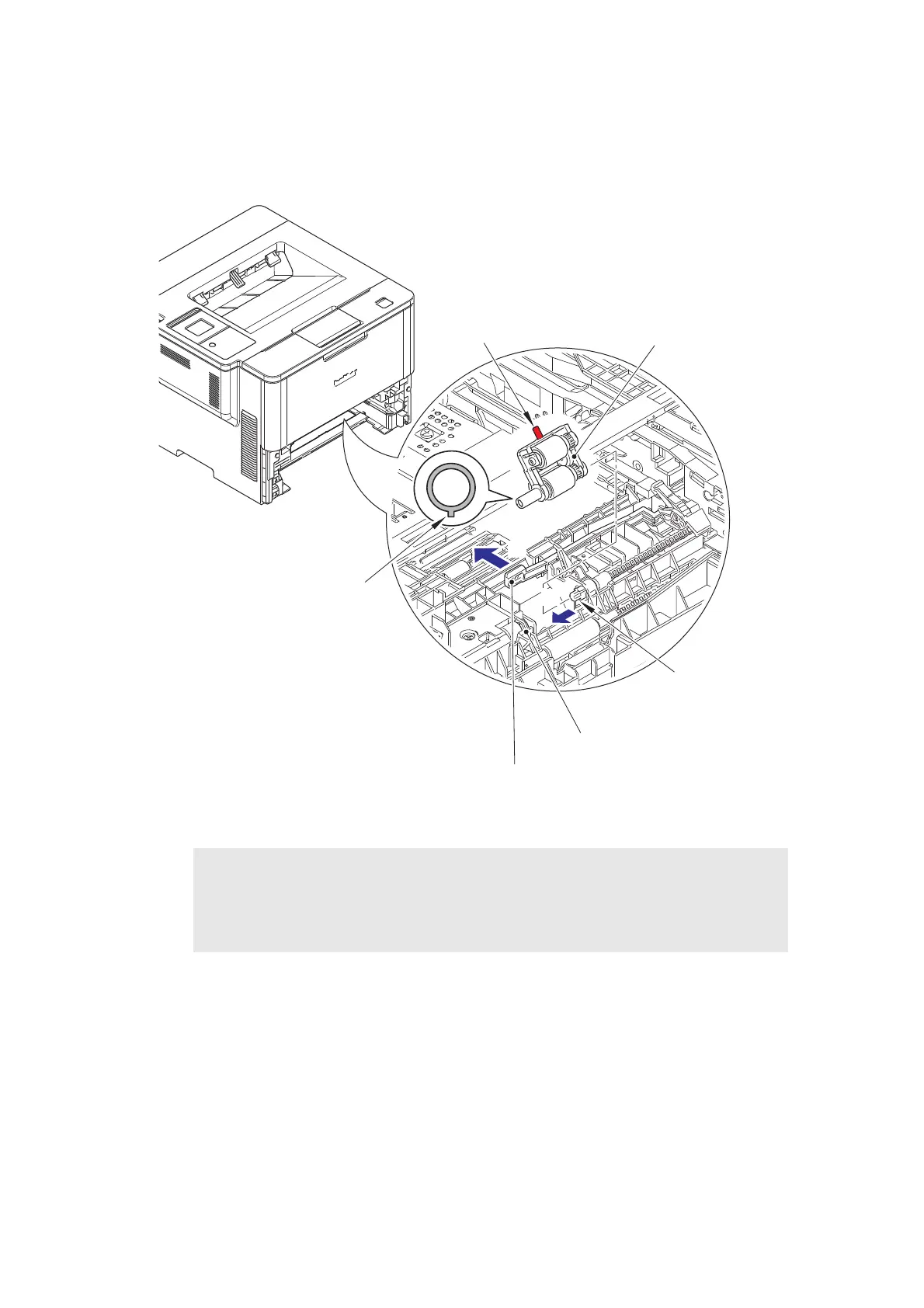

(4) Push the link arm in the direction of the arrow A, and turn the T1 roller holder ASSY to
remove the boss.
(5) Slide the T1 roller holder ASSY in the direction of the arrow B to remove it from the shaft,
and remove the T1 roller holder ASSY.
Fig. 7-21
Assembling Note:
• When attaching the T1 roller holder ASSY, engage "A" on the shaft of the T1 roller
holder ASSY with the hole on the T1 paper feed frame ASSY, and insert the shaft
into the hole.
T1 roller holder ASSY
Boss
Shaft
Link arm
A
B
<Back side>
"A"
T1 paper feed frame ASSY
<Front side>
To Next Page
