3-132

Confidential

(2) Remove the screw cup M3x8 screw (black) to remove the MX FG harness R, and

release it from the securing fixtures.

(3) Disconnect all the harnesses connected to MX relay PCB ASSY, and release them from

the securing fixtures of drive frame MX. Release each hook, and remove the MX relay

PCB ASSY.

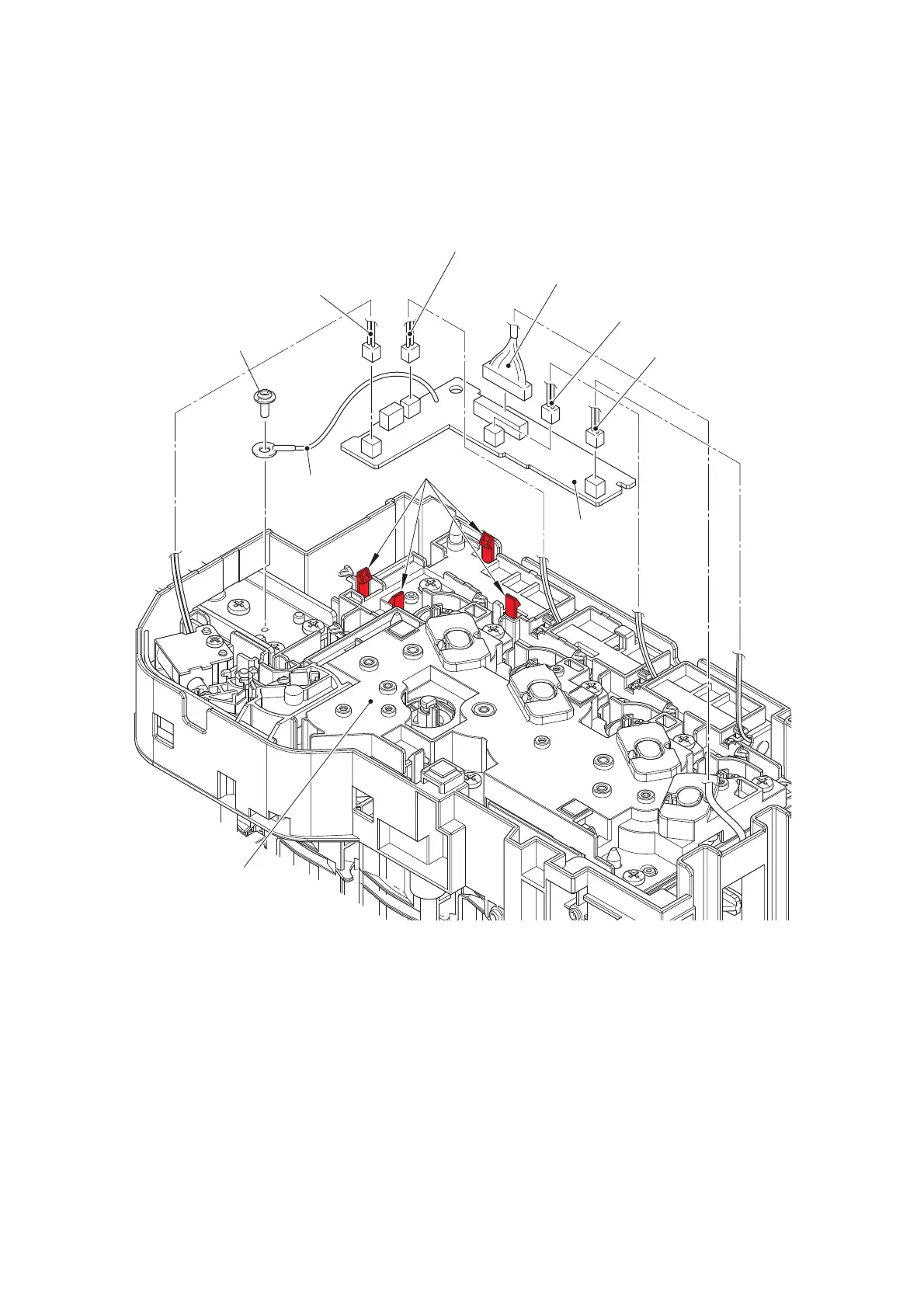

Fig. 3-124

Harness routing: Refer to “11. Right side of the MX”.

Screw cup M3x8 (black)

Hooks

MX FG harness R

Drive frame MX

MX relay

PCB ASSY

MX switching solenoid harness

MX 3bin switching solenoid harness

MX 2bin switching solenoid harness

MX 1bin switching

solenoid harness

MX relay PCB harness

Default Chapter4
