3-27

Confidential

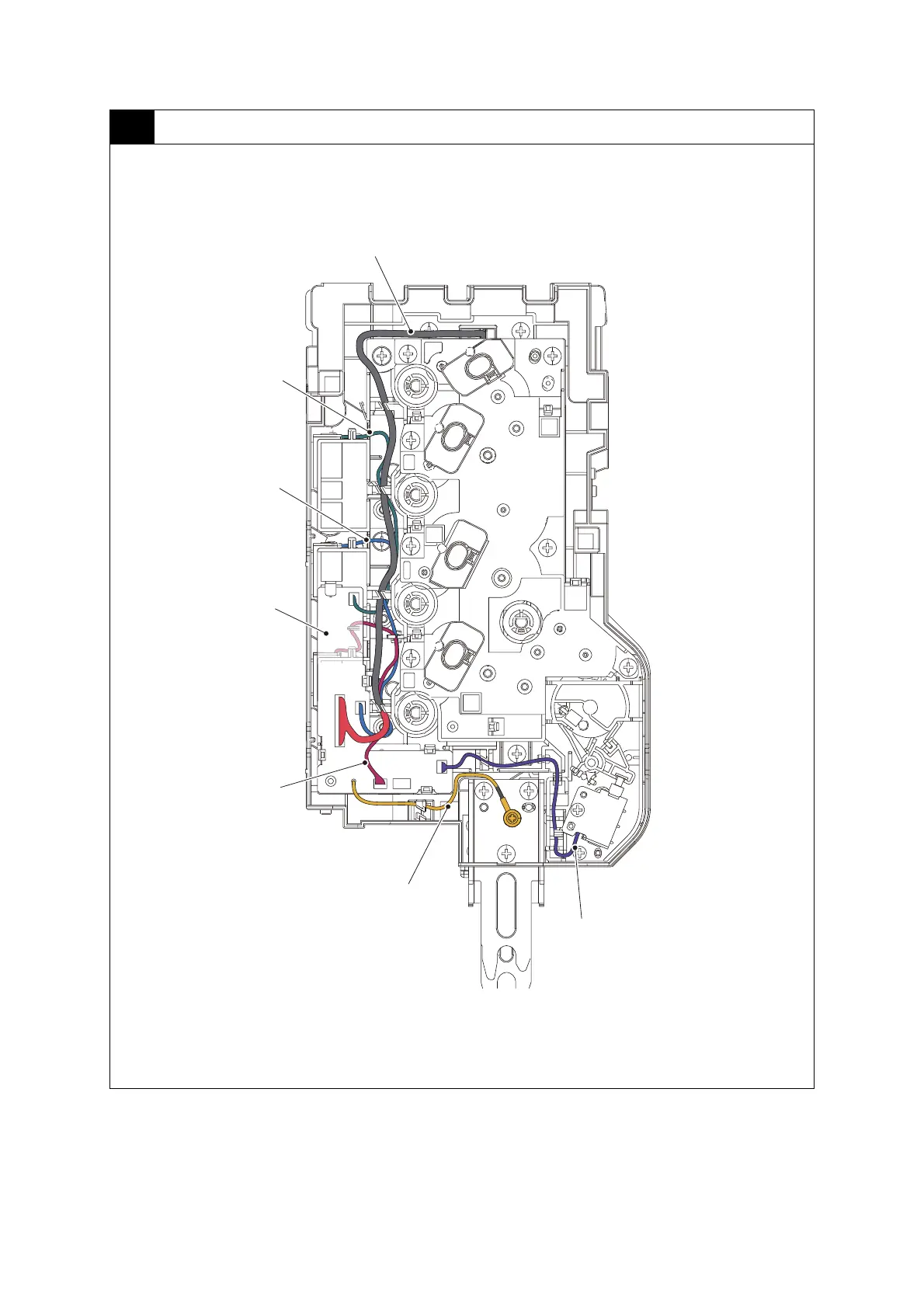

11 Right side of the MX

Harness colors are subject to change for some reason.

MX relay PCB harness (WH)

MX switching solenoid harness

(RD, YW)

MX 1bin switching

solenoid harness

(RD, YW)

MX 2bin switching

solenoid harness

(RD, YW)

MX relay PCB ASSY

MX 3bin switching

solenoid harness

(RD, YW)

MX FG harness R (WH)
