Brother HL-5590DN

To Next Page

To Previous Page

3-28

Confidential

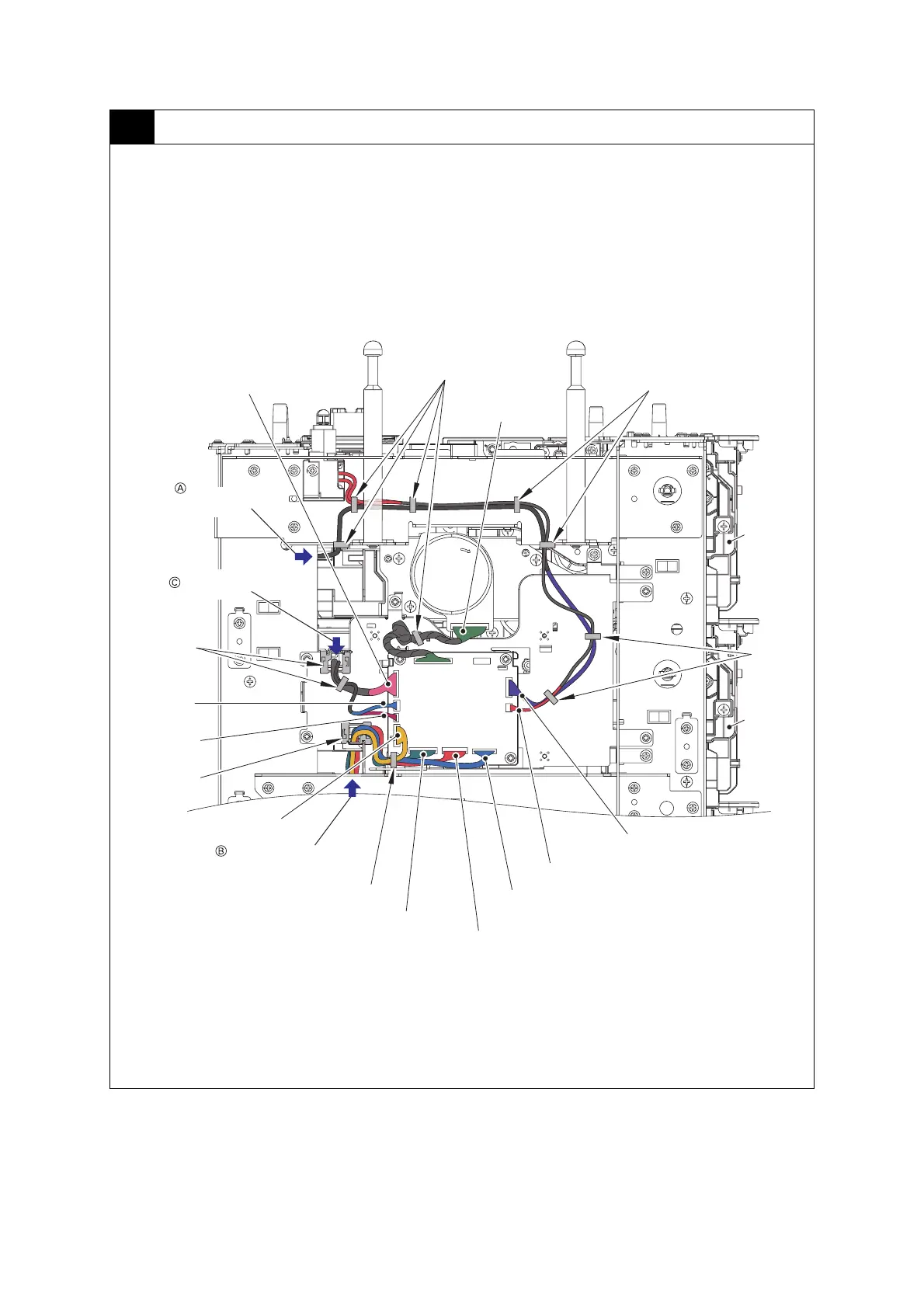

12 TT control PCB ASSY

Harness colors are subject to change for some reason.

Low-voltage power supply

harness (WH, BR)

Clamps

Clamp

Clamps

TT motor

harness (WH)

Fan motor relay

harness (WH)

TT balance

sensor R relay

harness (WH)

T2TT relay harness (WH)

T3TT relay harness (WH)

T4TT relay harness (WH)

T5TT relay harness (WH)

TT balance sensor L (WH, RD)

LT/TT connector harness (WH)

T3TT unit

T2TT unit

TT control PCB

ASSY

From in

13. Left side of the TT

From in 16. T3TT unit

From in 13. Left side of the TT
