3-130
Confidential
(8) Turn the 3rd layer of the bin ASSY A and the 1st layer of the bin ASSY B upside, and
remove them.
(9) Remove the bin number label 3 from the 3rd layer of the bin ASSY A.
(10) Remove the bin number label 1 from the 1st layer of the bin ASSY B.

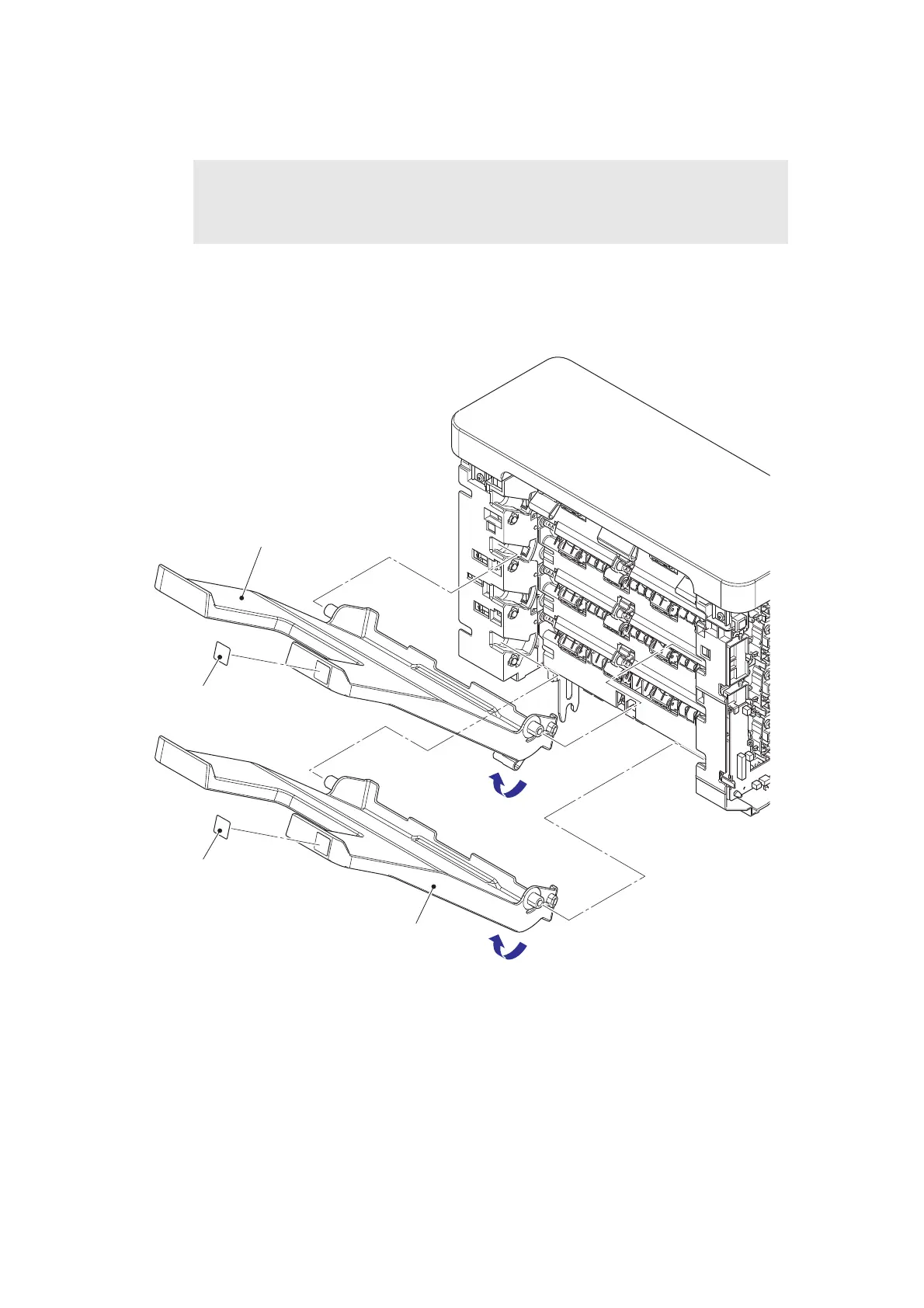

Fig. 3-122
Assembling Note:
• As the shape of the bin ASSY A is different from that of the bin ASSY B, do not
make mistakes in their attaching positions.
Bin ASSY A (the 3rd layer)
Bin number label 1
Bin ASSY B (the 1st layer)
Bin number label 3
To Next Page
