3-184

Confidential

(3) Turn the TT paper feed actuator in the direction of the arrow A and press the hook on the

TT paper feed actuator holder ASSY. Slide the TT paper feed actuator in the direction of

the arrow B to remove it from the TT paper feed actuator holder ASSY.

(4) Remove the TT paper feed actuator spring from the TT paper feed actuator.

(5) Release the TT paper feed sensor harness from the securing fixtures of the TT paper

feed actuator holder ASSY, and release the hook to remove the TT paper feed sensor

PCB ASSY from the TT paper feed actuator holder ASSY.

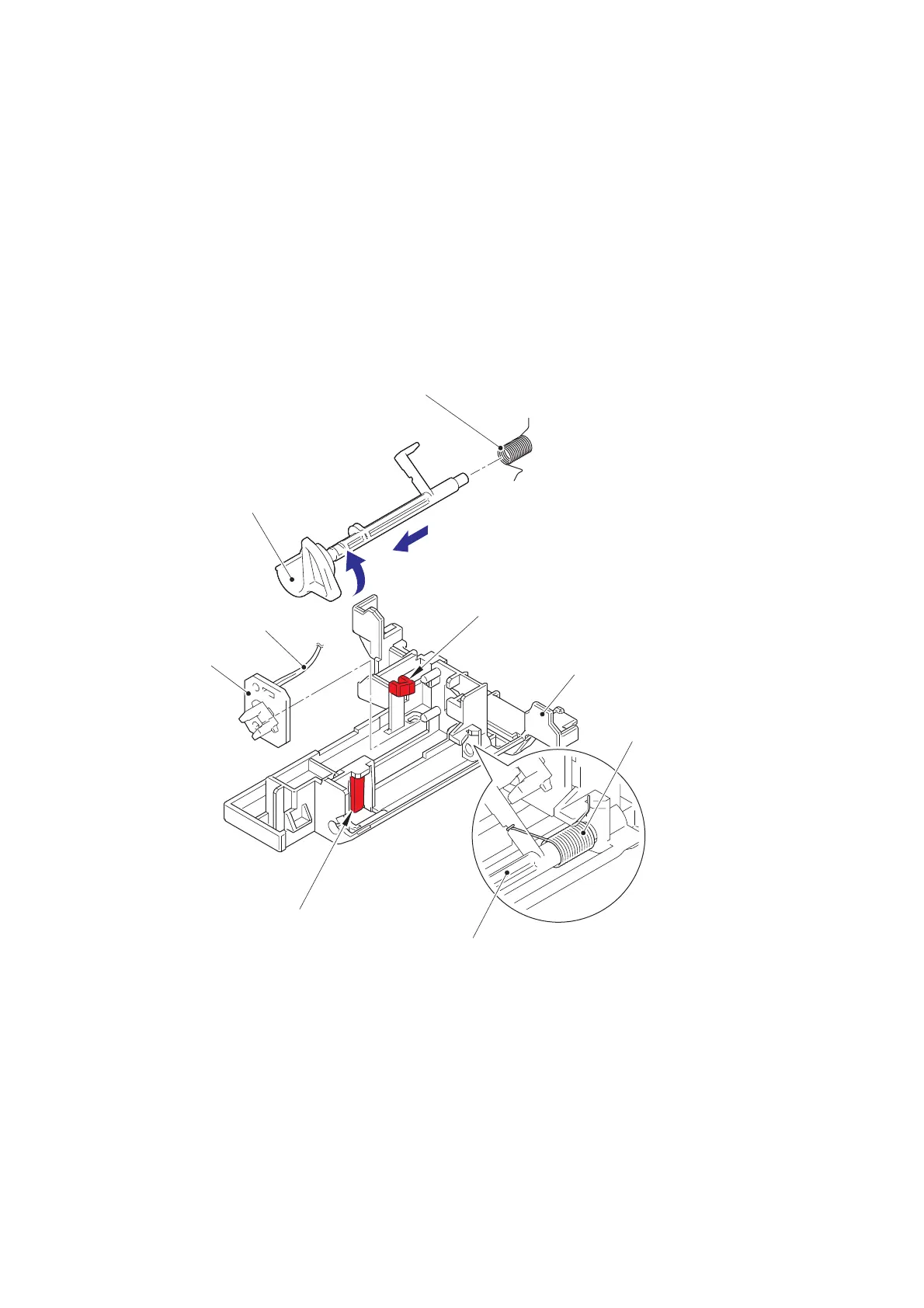

Fig. 3-182

Harness routing: Refer to “15. TT relay PCB ASSY (Each TT unit)”.

Hook

TT paper feed actuator

TT paper feed actuator holder ASSY

TT paper feed actuator spring

TT paper feed

sensor harness

TT paper feed

sensor PCB ASSY

TT paper feed actuator

TT paper feed actuator spring

Default Chapter4
