3-182

Confidential

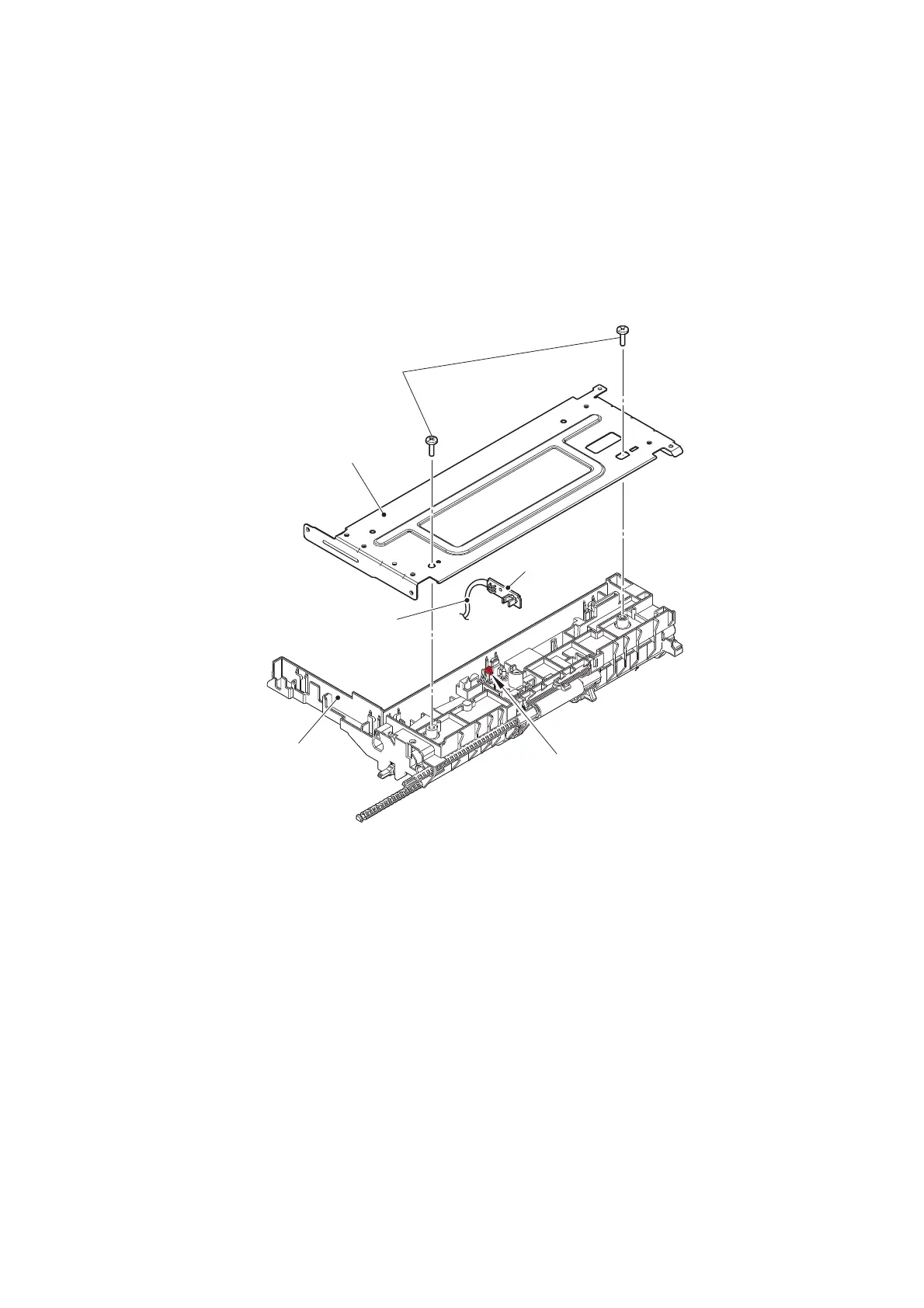

(6) Remove the two taptite bind B M4x12 screws to remove the TT front beam from the TT

paper feed frame ASSY.

(7) Release the TT jam sensor harness from the securing fixtures.

(8) Release the hook to remove the TT jam sensor PCB ASSY.

Fig. 3-180

Harness routing: Refer to “15. TT relay PCB ASSY (Each TT unit)”.

TT paper feed frame ASSY

TT front beam

Taptite bind B M4x12

TT jam sensor

PCB ASSY

TT jam sensor harness

Hook
