3-98

Confidential

(5) Disconnect the registration front/rear sensor harness, T1 paper feed sensor harness and

the MP paper empty sensor harness from the high-voltage power supply PCB ASSY to

remove the high-voltage power supply PCB ASSY.

(6) Disconnect the HVPS flat cable from the high-voltage power supply PCB ASSY.

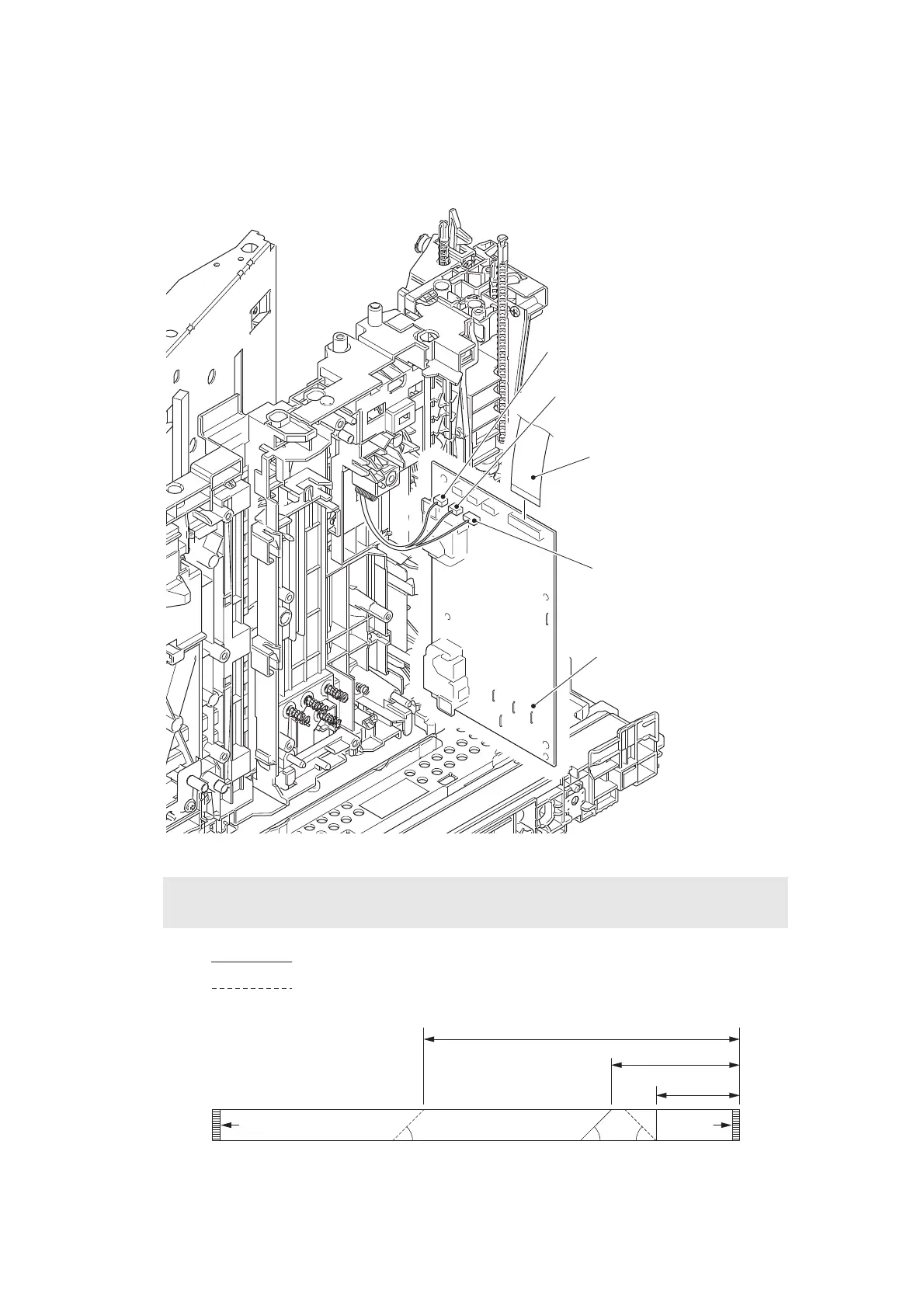

Fig. 3-87

Fig. 3-88

Assembling Note:

• Fold the HVPS flat cable at the positions shown in the figure below.

HVPS flat cable

High-voltage power

supply PCB ASSY

Registration front/rear sensor

harness

T1 paper feed sensor harness

MP paper empty sensor harness

Mountain fold

Valley fold

221±1

90±1

58±1

Main PCB

side

HVPS

side

45° 45°

Conductor
