3-158

Confidential

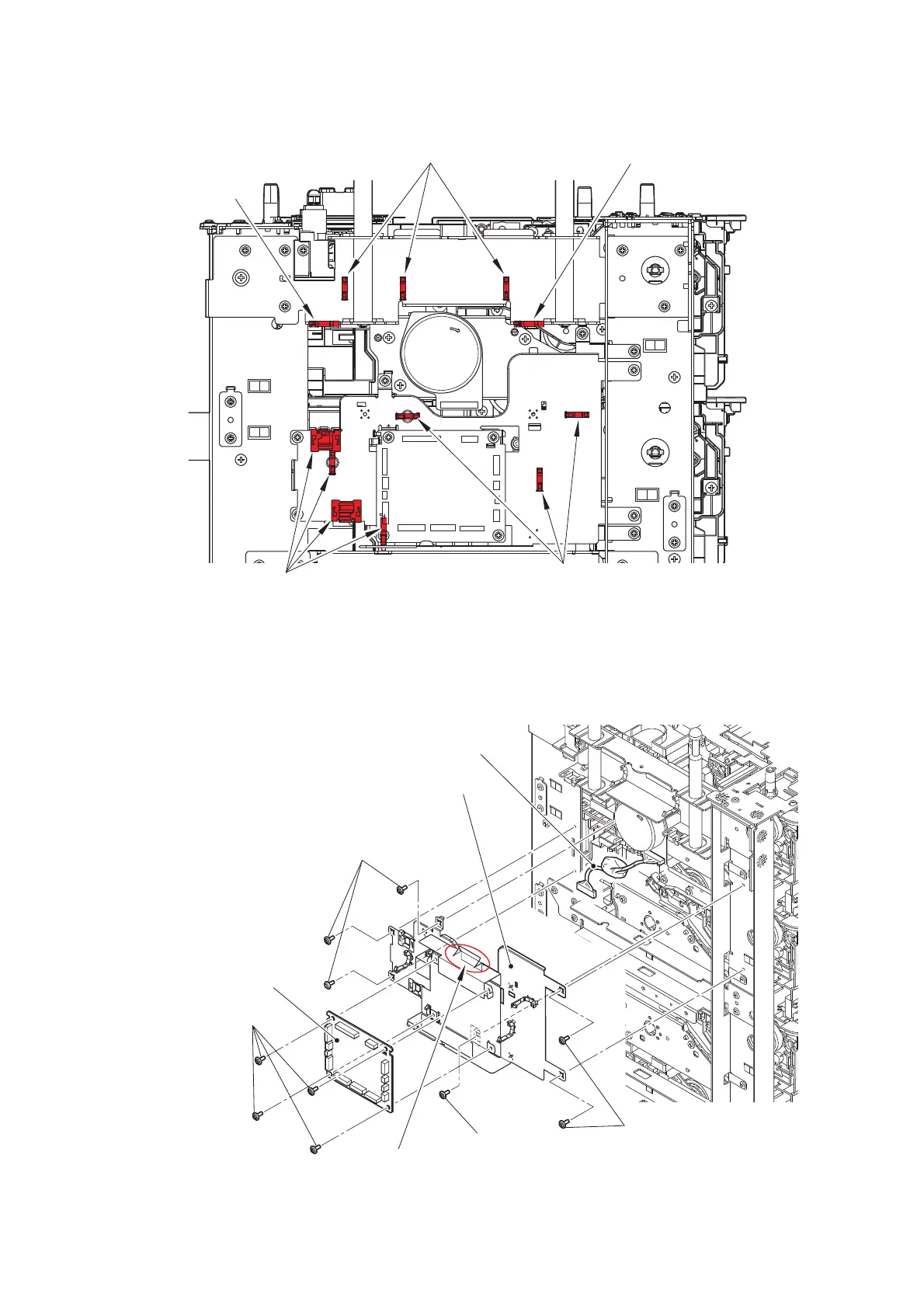

(3) Loosen all clamps and release them from the securing fixtures.

Fig. 3-153

Harness routing: Refer to “12. TT control PCB ASSY”.

(4) Remove the four screw cup M3x8 (black) screws to remove the TT control PCB ASSY.

(5) Remove the six screw cup M3x8 (black) screws to remove the PCB shield plate. Pull out

the TT motor harness through the insulation sheet hole.

Fig. 3-154

Clamp

Clamps

Clamp

Clamps

Screw cup M3x8 (black)

PCB shield plate

Screw cup M3x8 (black)

TT control PCB ASSY

Insulation sheet hole

Screw cup M3x8 (black)

TT motor harness
