3-156

Confidential

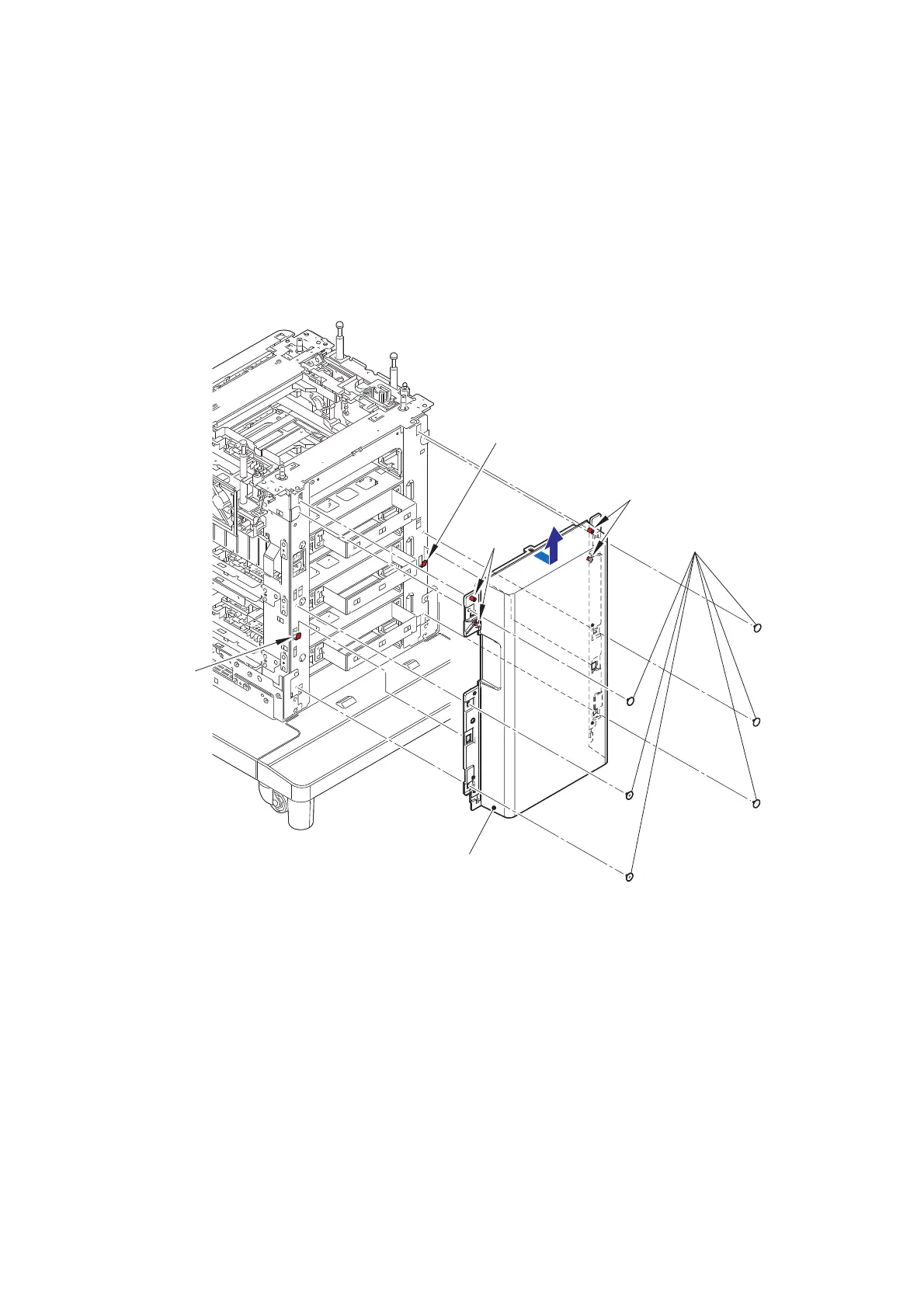

(4) Remove the six shoulder screws (black).

(5) Remove the four bosses while pushing the back cover top in the direction of the arrow,

slide it up to release the two hooks, and remove the back cover.

Fig. 3-150

Bosses

Hook

Back cover

Shoulder screws (black)

Bosses

Hook
