3-155

Confidential

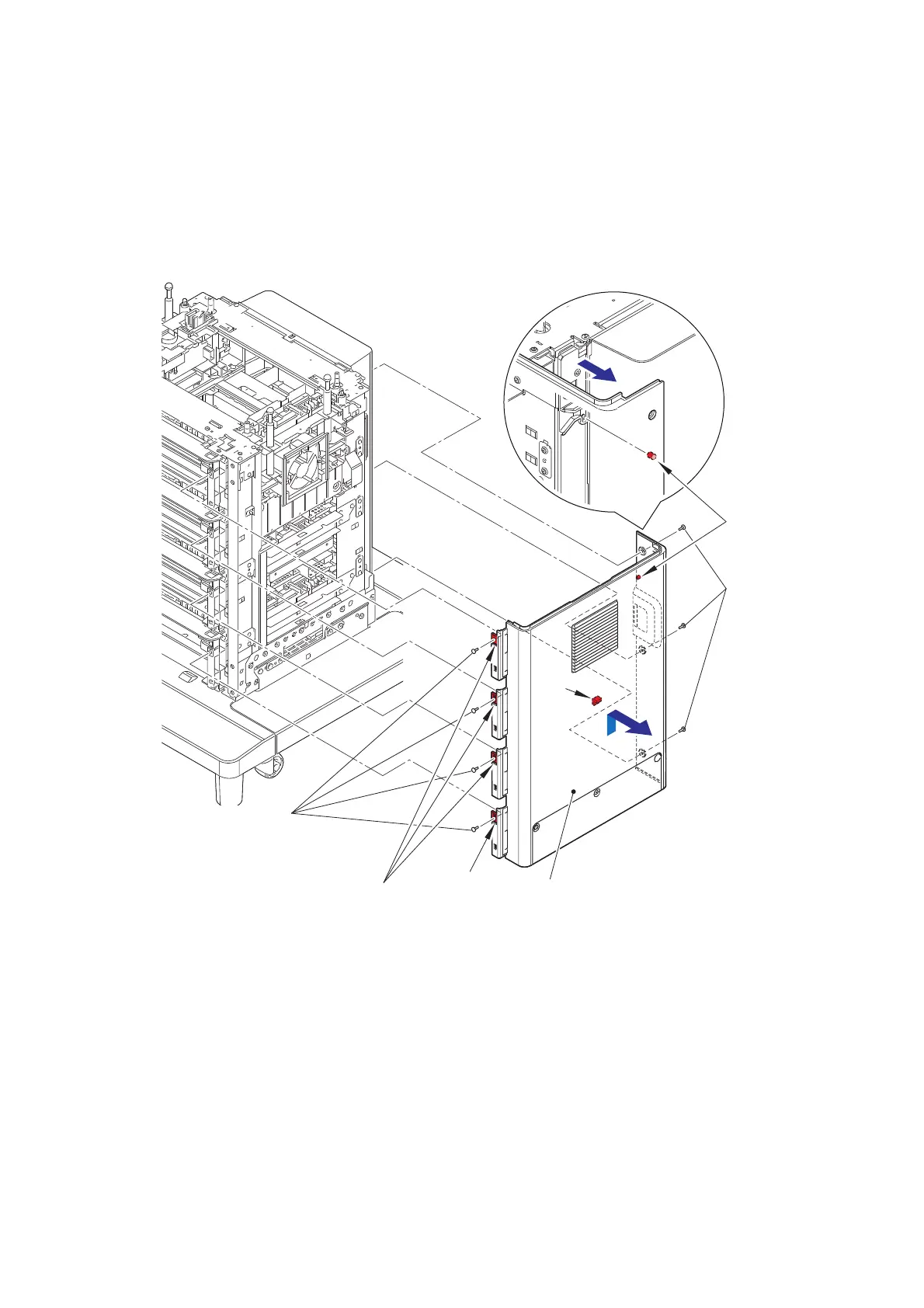

(3) Remove the seven taptite bind B M4x10 screws. Release the front hooks, and remove

the boss while pushing the rear top in the direction of the arrow A. Release the inner

hook while sliding it in the direction of the arrow B to remove the side cover R.

Fig. 3-149

Side cover R

Taptite bind

B M4x10

Hooks

Hook

Boss

Taptite bind B M4x10

Hook
