3-55

Confidential

(4) Remove the four taptite cup B M3x10 screws. Remove the panel cover case lower from

the top cover printed ASSY. Pull out the FG harness and two flat cables from the hole.

(5) Release the hook, and remove the panel ground spring. Remove the panel spring from

the panel ground spring.

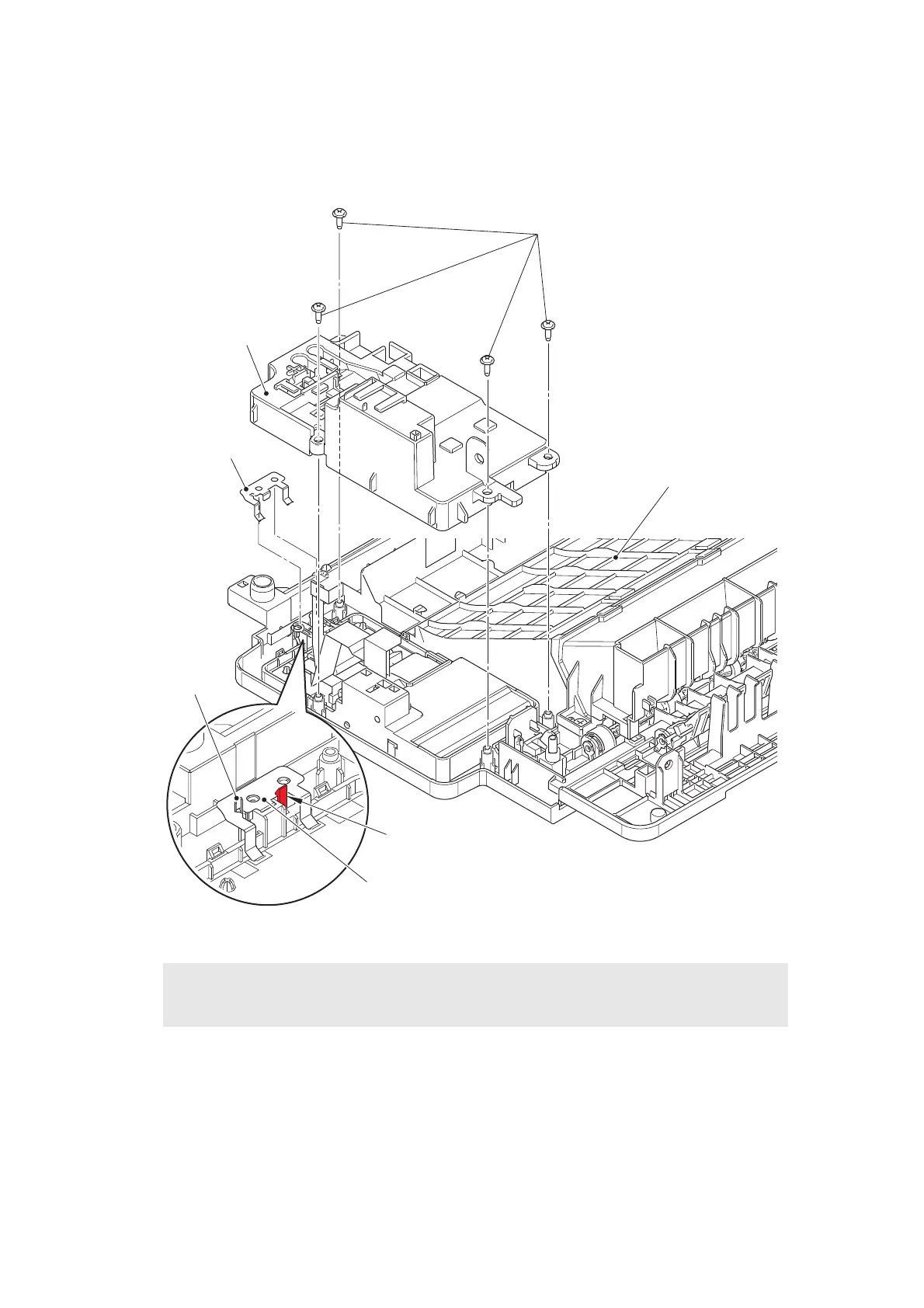

Fig. 3-41

Assembling Note:

• Attach the panel ground spring and panel spring as described in the figure above.

Panel cover case lower

Panel ground spring

Top cover printed ASSY

Taptite cup B M3x10

Panel ground spring

Panel spring

Hook
