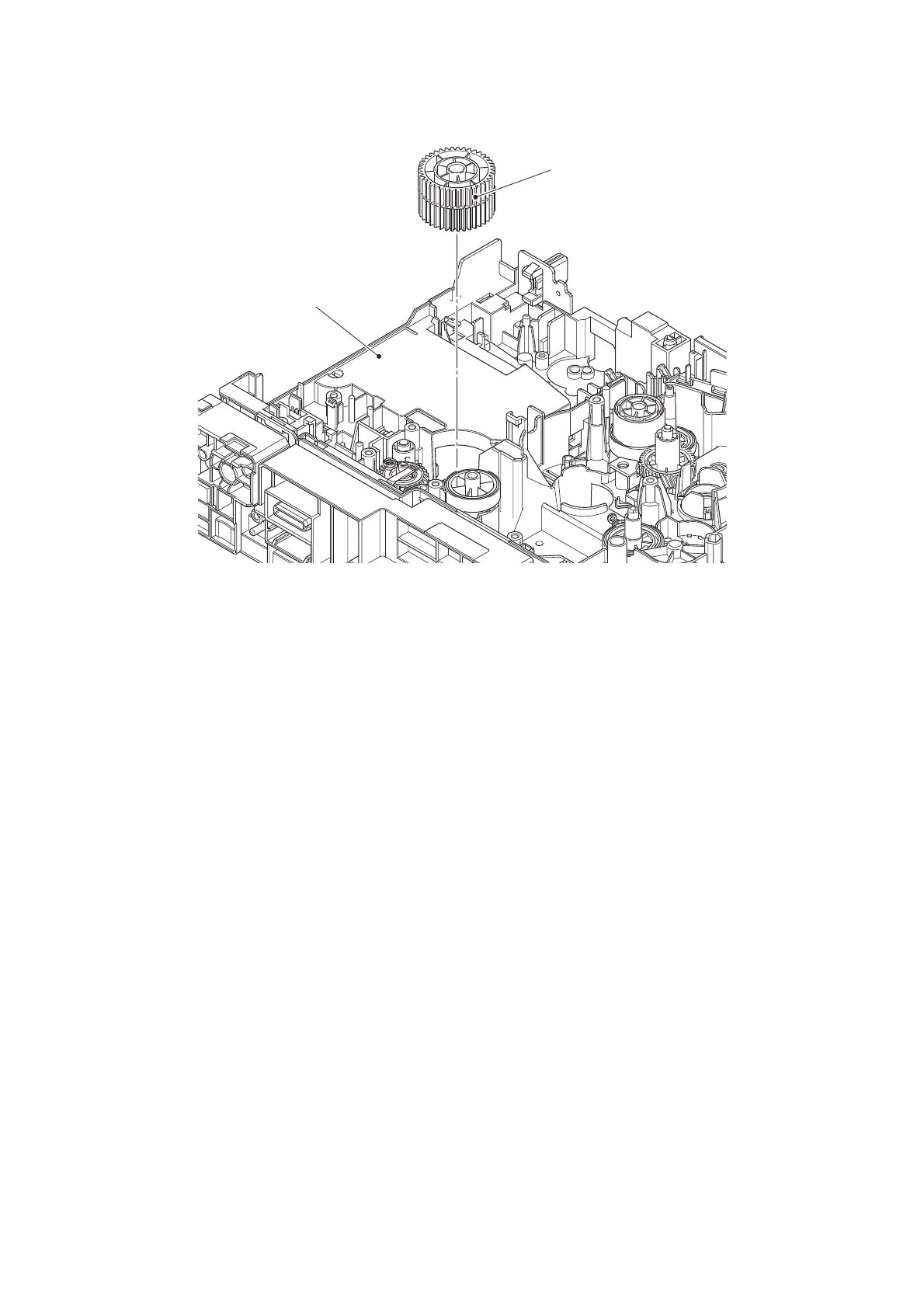

(2) Remove the fuser drive gear 39 from the main frame L ASSY.

Fig. 3-80

Fuser drive gear 39

Main frame L ASSY
