3-120
Confidential
(8) Release the LT release clutch harness from the securing fixtures.
(9) Remove the three taptite bind B M4x12 screws. Remove the LT drive ASSY from the LT
frame L unit, and pull out the LT release clutch harness from the hole.
(10) Remove the LT release clutch from the LT frame L unit.
(11) Remove the LT clutch shaft and LT gear 22 from the LT release clutch.

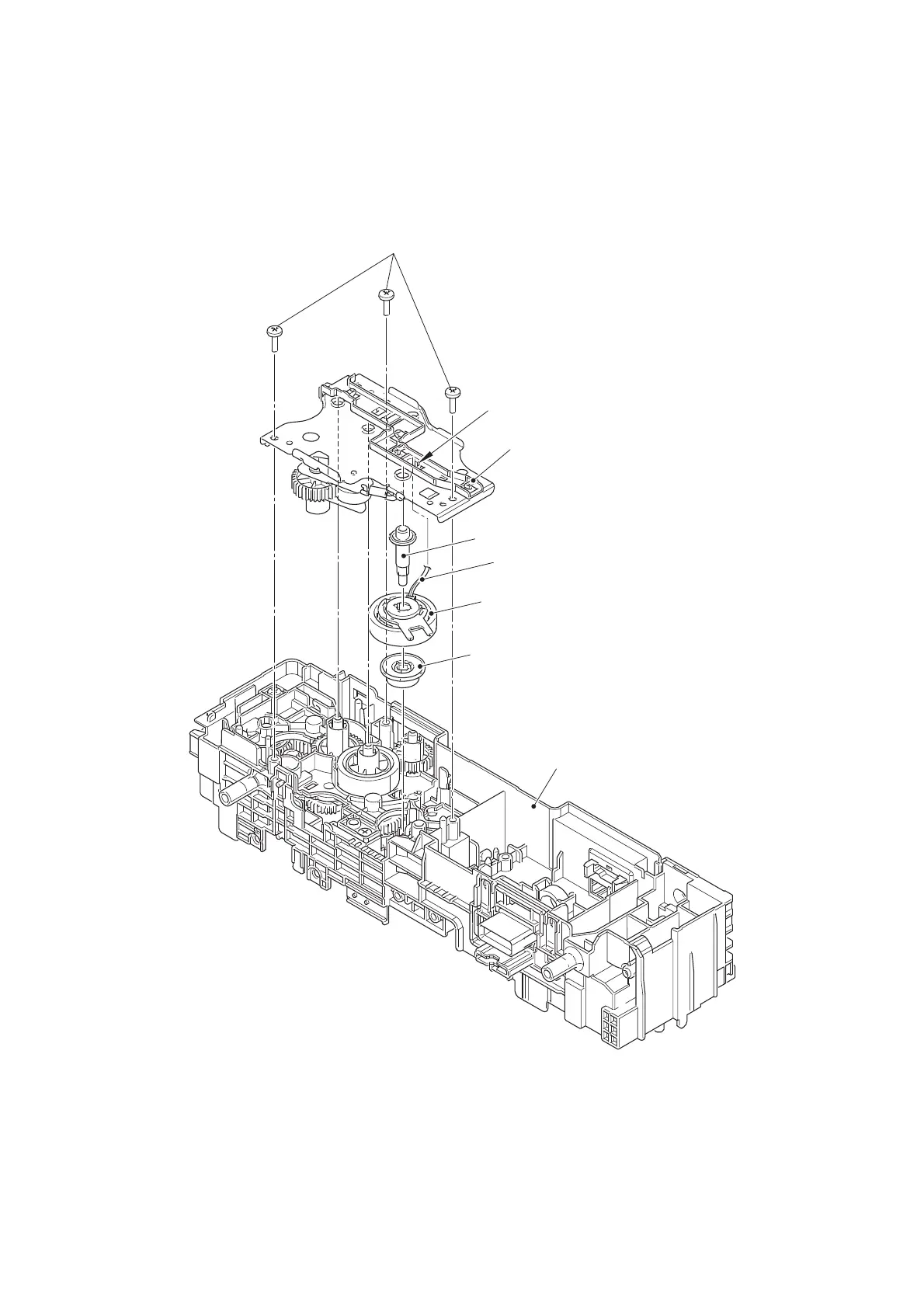

Fig. 3-111
LT drive ASSY
LT clutch shaft
LT release clutch
LT gear 22
LT frame L unit
Taptite bind B M4x12
Hole
LT release clutch harness
To Next Page
