3-160

Confidential

(3) Loosen each clamp, release the TT balance sensor R harness from the securing

fixtures, and disconnect it from the TT balance sensor R relay harness.

(4) Remove the taptite cup S M3x8 SR screw to remove the attach sensor holder.

(5) Release the two hooks to remove the TT balance sensor R from the attach sensor

holder.

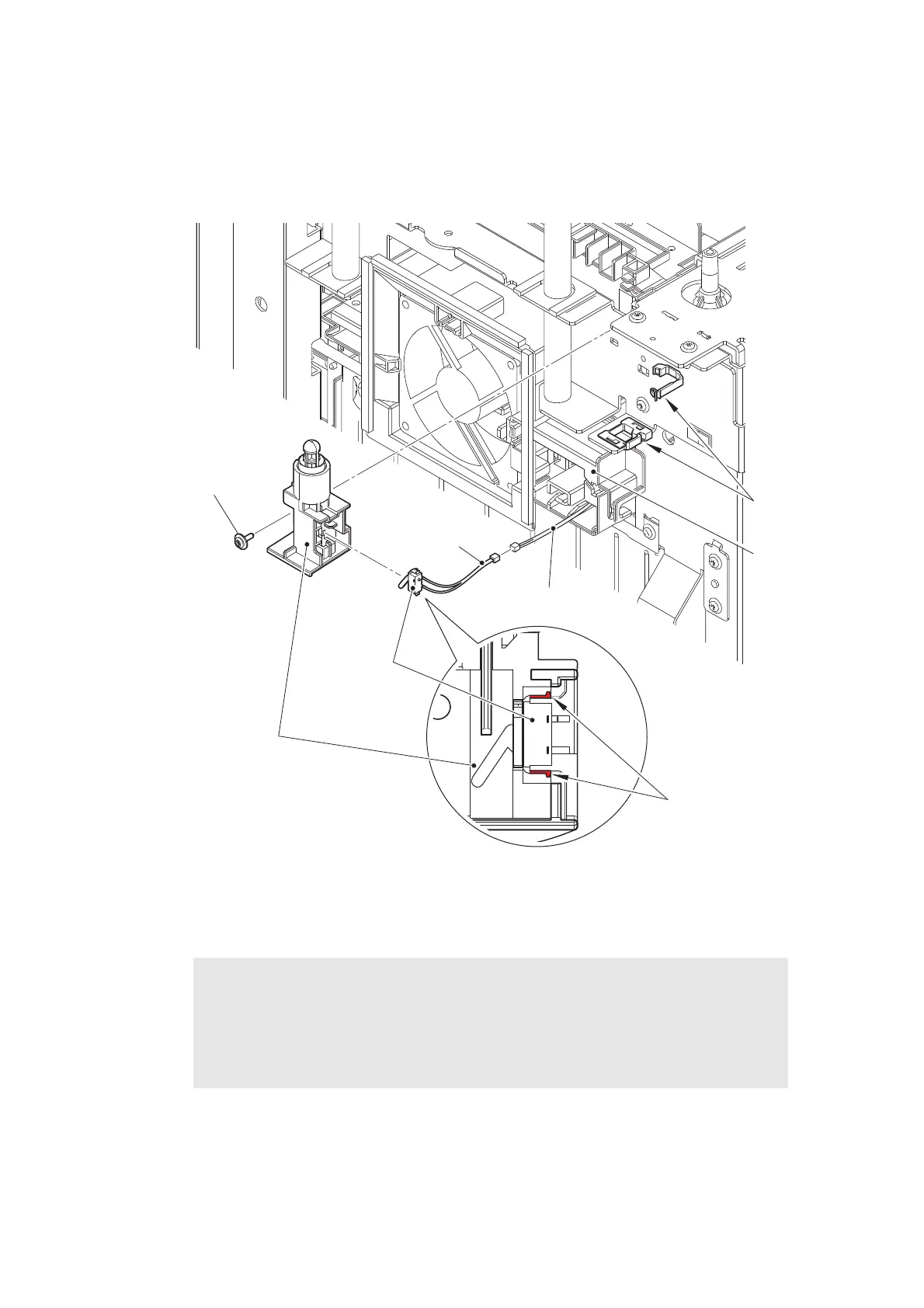

Fig. 3-156

Harness routing: Refer to “14. Upper right of the TT”.

Assembling Note:

• Do not pull the TT balance sensor R relay harness too much, it may cause a

connection failure with the TT control PCB ASSY.

• When wiring, make sure that the TT balance sensor R harness does not come out

of the air duct.

Attach sensor holder

Taptite cup S M3x8 SR

Hooks

TT balance

sensor R

Clamps

TT balance sensor

R harness

TT balance sensor R

relay harness

Air duct
