(4) Push the link arm in the direction of the arrow A, and turn the roller holder ASSY to
remove the boss.
(5) Slide the roller holder ASSY in the direction of the arrow B to remove it from the shaft,
and remove the roller holder ASSY.

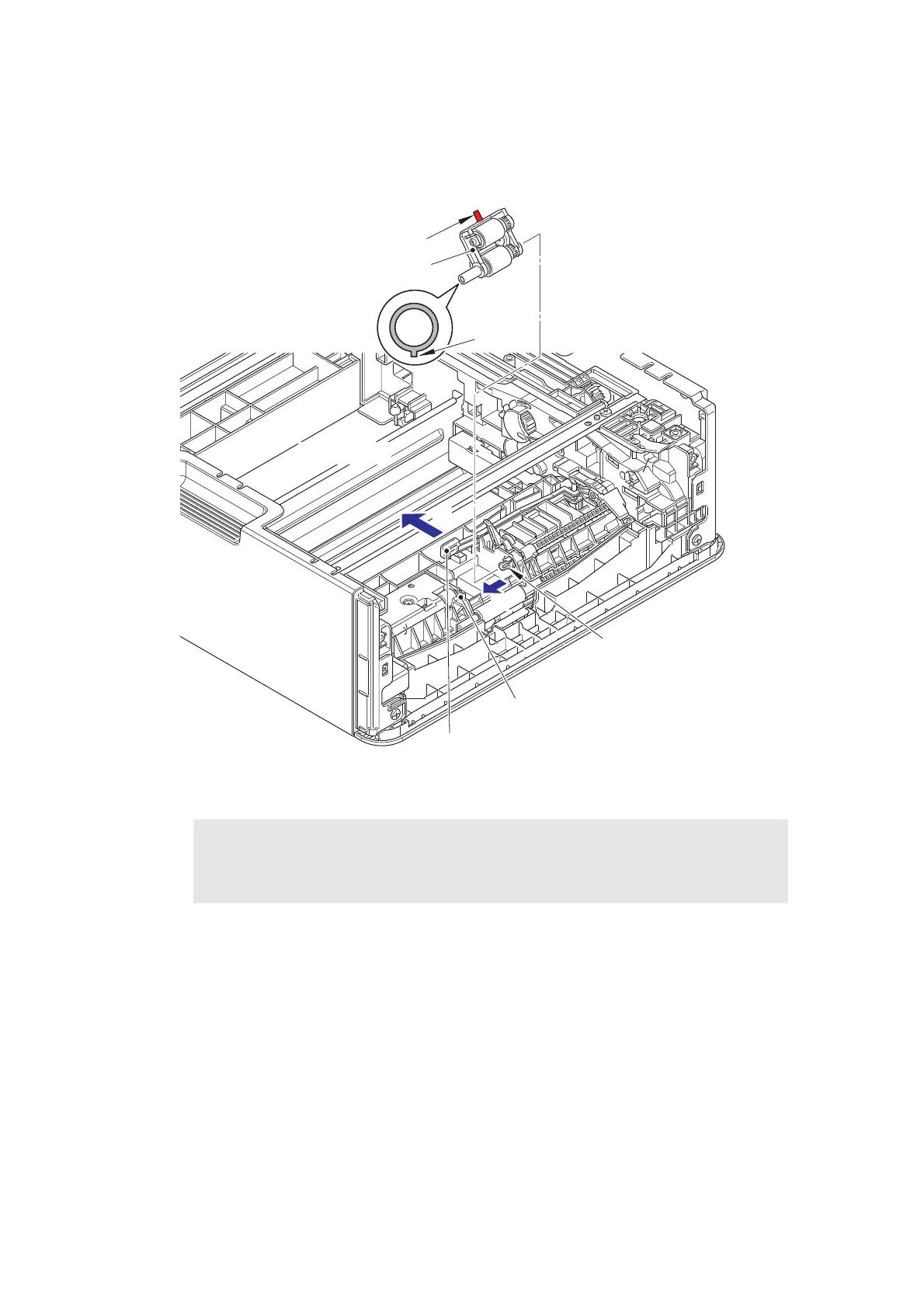

Fig. 7-23
Assembling Note:
• When attaching the roller holder ASSY, engage "A" on the shaft of the roller holder
ASSY with the hole on the feed frame ASSY, and insert the shaft into the hole.
Roller holder ASSY
Boss
Shaft
Link arm
A
B
<Bottom side>
"A"
Feed frame ASSY
<Front side>
