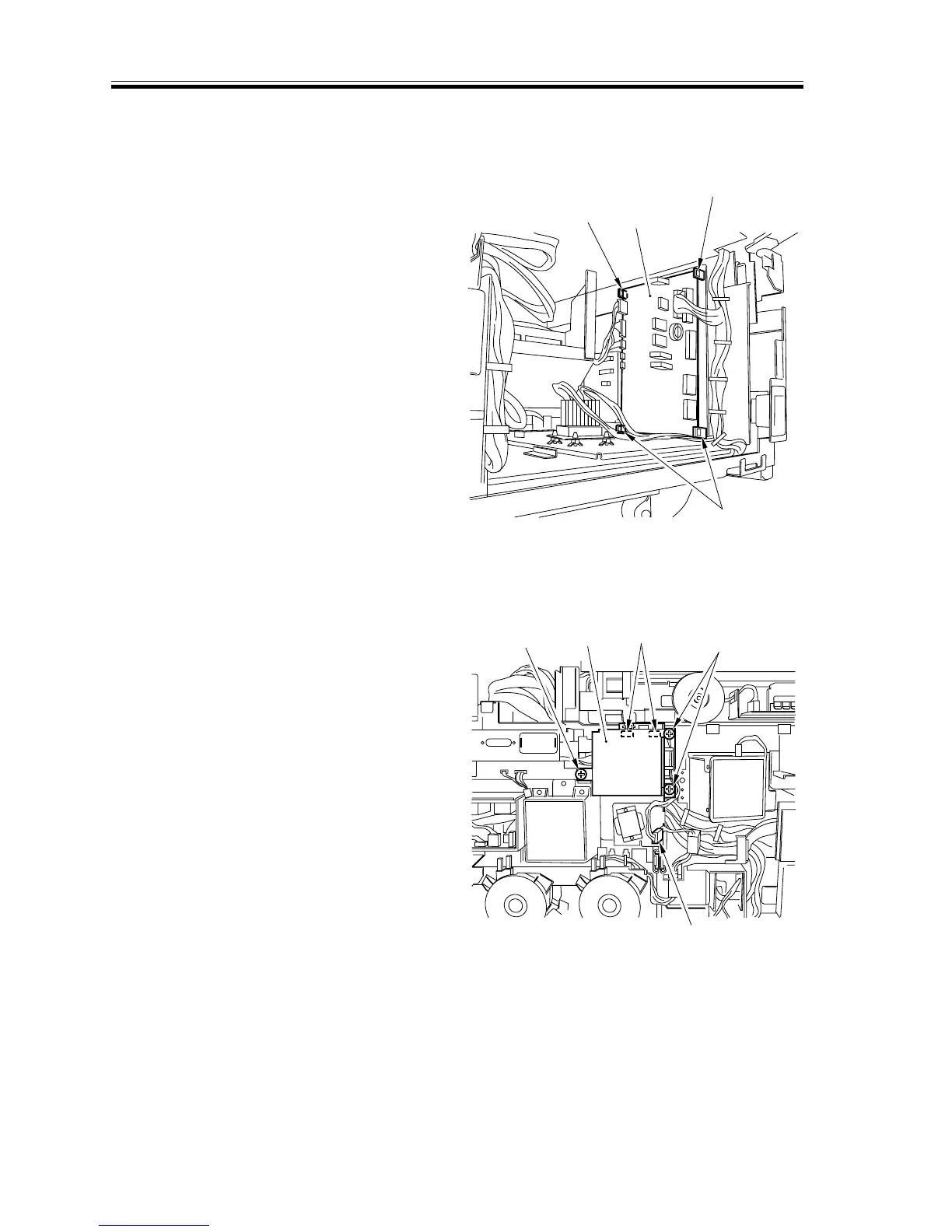

f. Removing the AC Driver PCB
1) Remove the rear cover (3).
2) Disconnect the connectors from the
PCB, and remove the four PCB retain-
ing clips [1]; then, detach the AC driver
PCB [2].
[1]
[1]
[1]
[2]
[1]
[1]
[2]
[2]
[3]
F02-706-31
g. Removing the Lamp Regulator
1) Remove the rear cover (1).
2) Disconnect the three connectors [1], and
remove the three screws [2]; then, de-
tach the lamp regulator [3].
F02-706-32
