CHAPTER 2 NEW FUNCTIONS
Photosensitive
drum (M)
Photosensitive
drum (C)
Registration roller
Transfer belt
Holding tray
Cassette 1
Cassette 2
Paper deck
8.3 Outline of Operations
8.3.1 Outline
A paper deck enables accommodation of a large volume of paper (as many as 2,000
sheets in the Paper Deck-J1; 4,000 sheets in the Paper Deck-K1), and serves to feed sheets
to its host copier in response to control signals from the DC controller PCB.

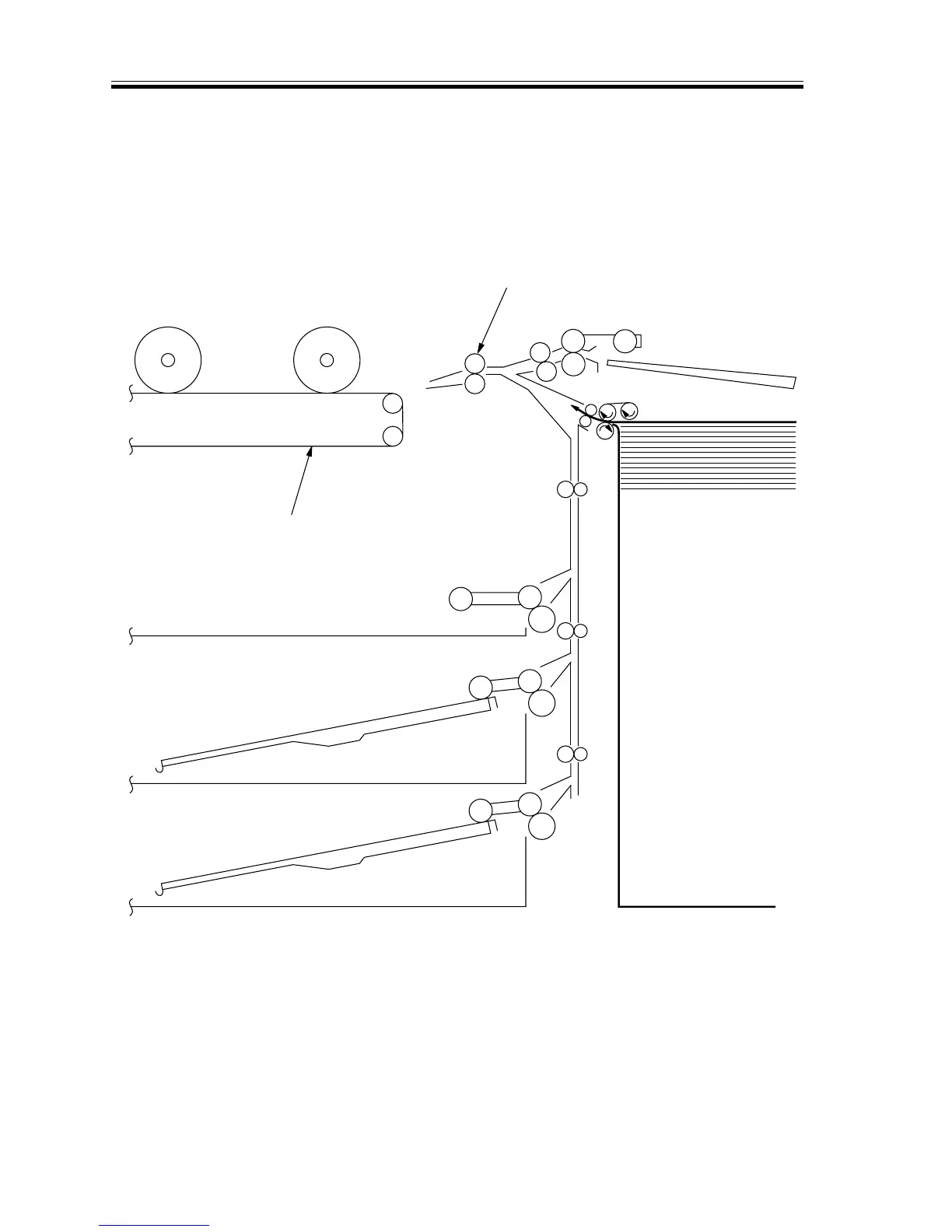

F02-803-01
