5 Troubleshooting Feeding Problems
5.1 Jams
The CLC1000 may be divided into the following blocks in terms of where copies tend to
jam.
[1] Pick-up assembly
[2] Pick-up feeding assembly
[3] Transfer unit assembly
[4] Separation/pre-fixing feeding assembly
[5] Fixing/delivery assembly
[6] Delivery vertical path assembly, duplexing reversing assembly, pre-holding tray feeding
assembly
[7] Re-pick-up assembly

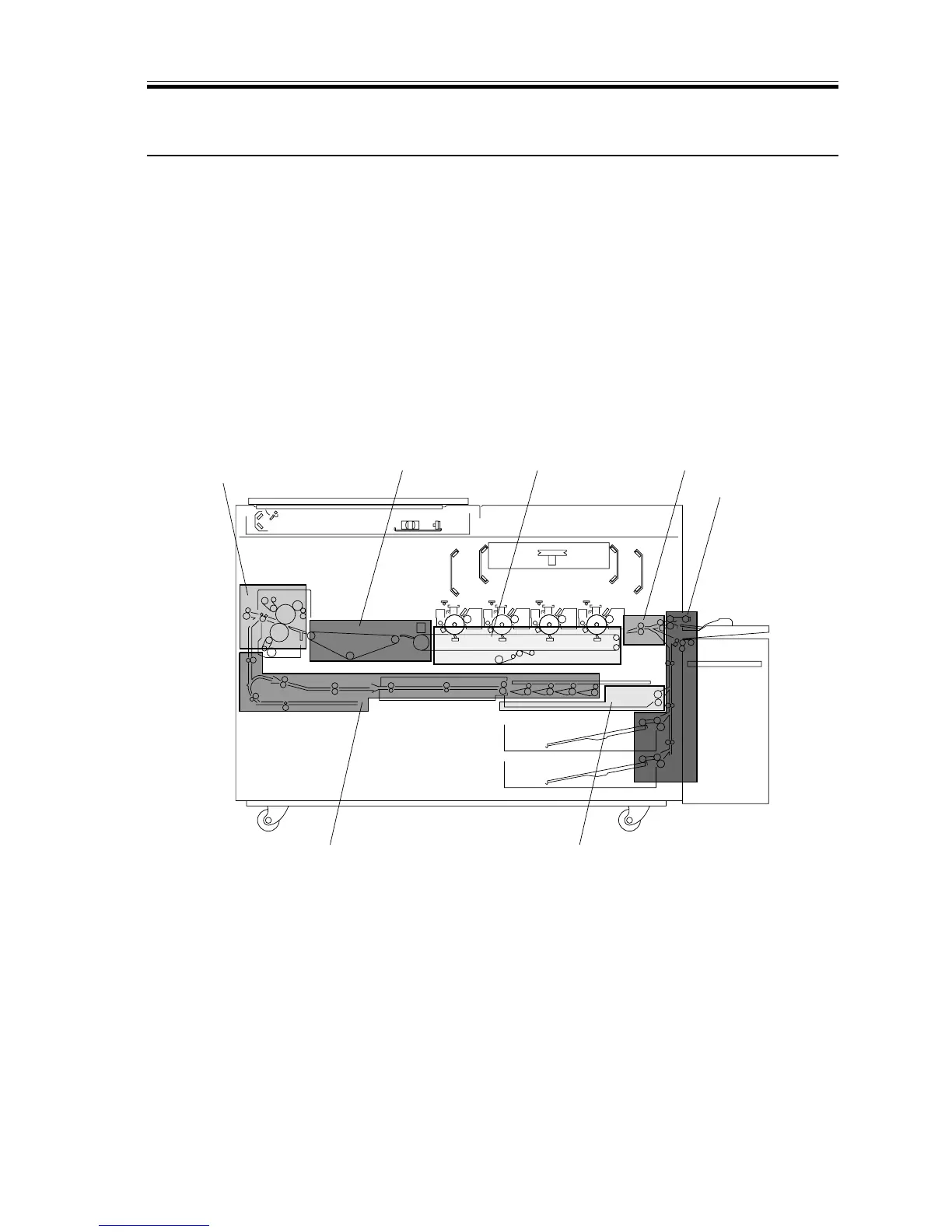

F05-501-01
[5]
[4] [3] [2]
[1]
[7][6]
