Canon CLC5000 - Removing the C Image Position Correction Mirror Unit

2-25
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

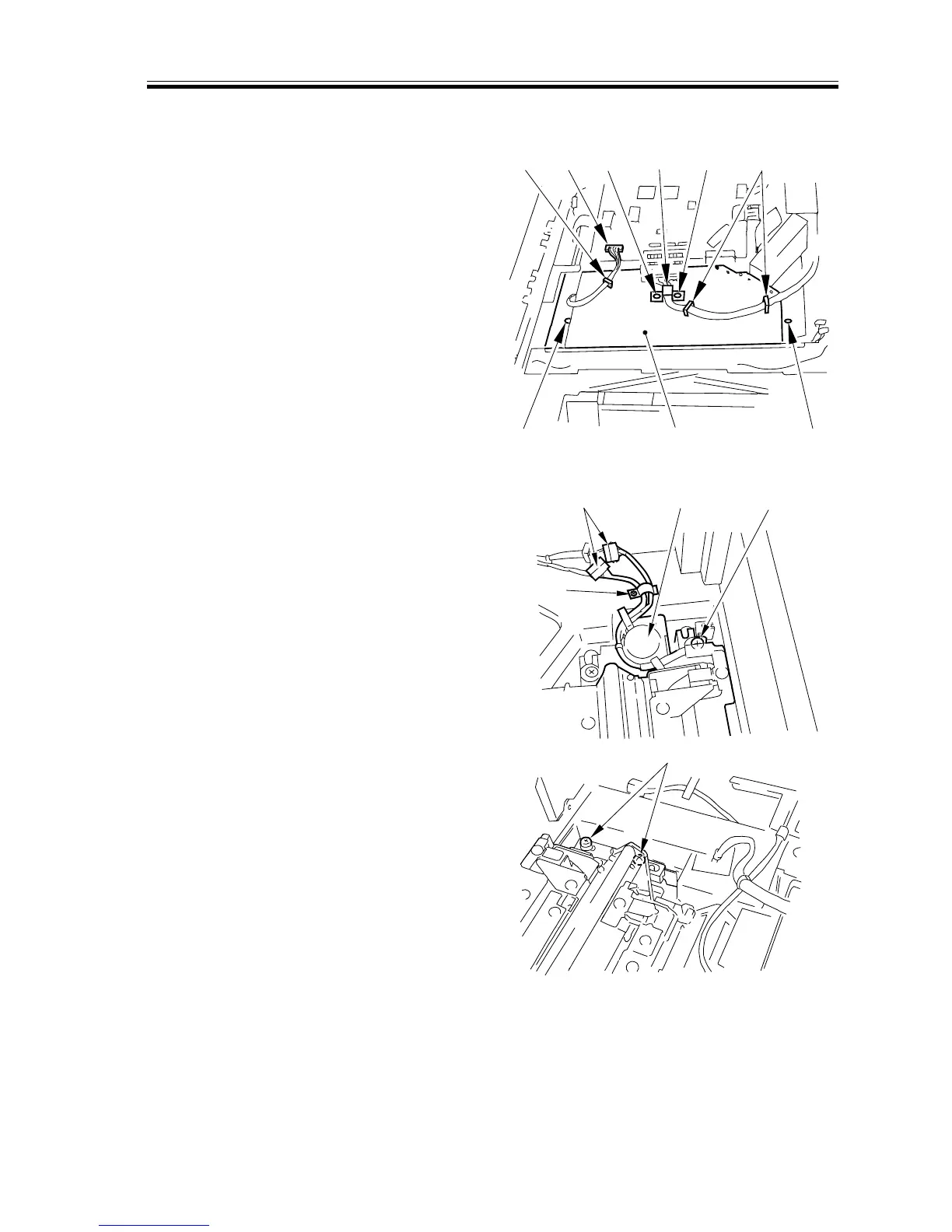

3.5.3 Removing the C Image Position Correction Mirror Unit
1) Perform laser unit-related preparatory
work.
2) Remove the two cable mounting screws
[1] and the cable clamp [2]. Remove the
two cover mounting screws [3], and dis-
connect the connector [4] from the
video controller PCB; then, detach the
image position correction mirror cover.
[1] [1][2] [2] [2][4]
[3][3] [5]
F02-305-10
3) Disconnect the two connectors [6], and
remove the four screws [7]; then, detach
the C image position correction mirror
unit [8].
[6]
[7]
[7]
[7]
[8]
F02-305-11
