5.7.10 Delivery/Reversing Assembly
a.Removing the Delivery/Reversing Assembly
1) Open the front left cover, and detach the
left cover.
2) Slide out the fixing unit.
3) Loosen the two screws [1].

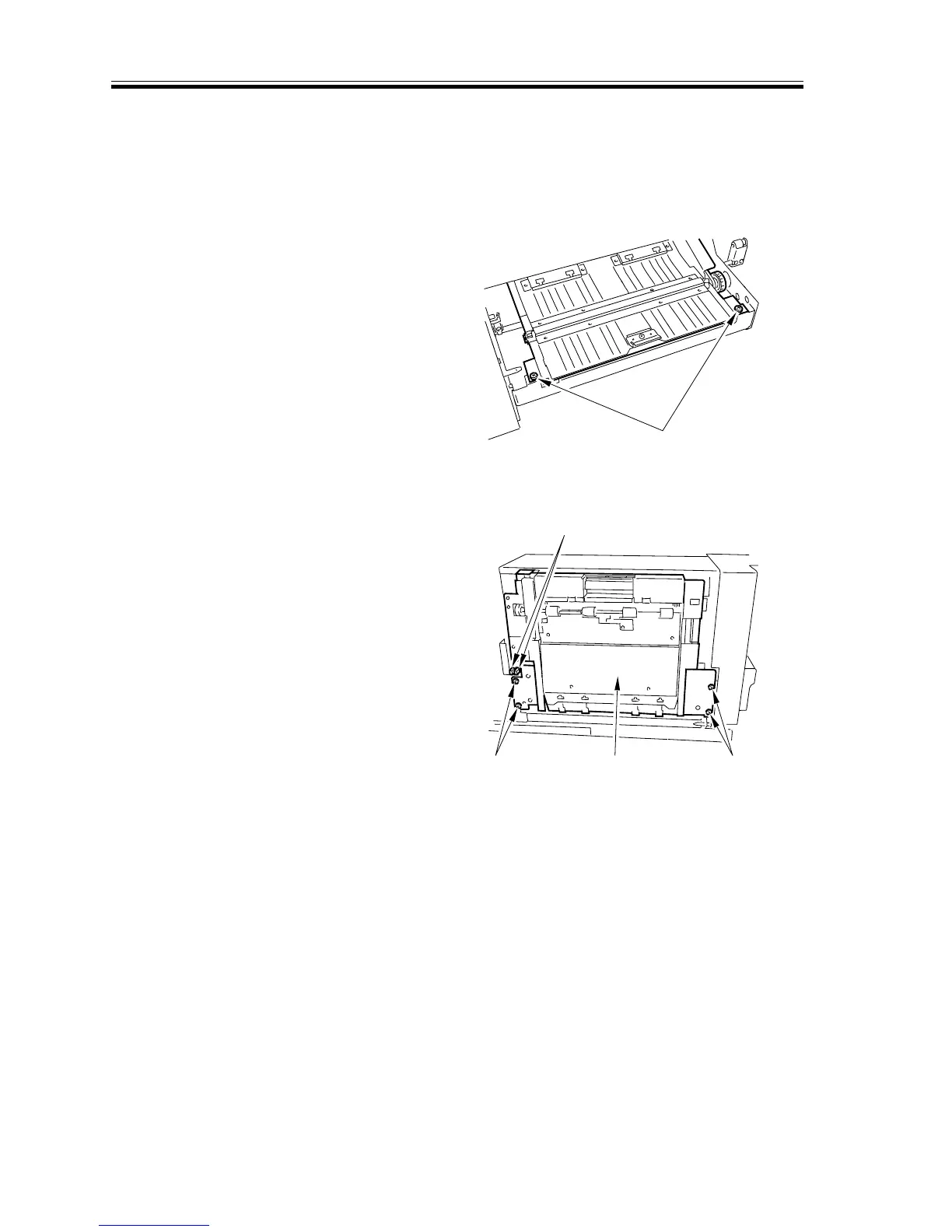

F02-507-23
4) Remove the four screws [2], and open
the outside delivery unit and the inside
delivery unit; then, disconnect the two
connectors [3], and pull out the deliv-
ery/reversing assembly [4] to the left of
the machine.
F02-507-24
[1]
[2]
[2]
[3]
[4]
