1.3 Basic Sequence of Operations (exposure system)
1.3.1 Scanner Home Position Sensor and Operations
The scanner home position sensor (PS37) turns on as follows:
• When the power is turned on.
• When the Start key is pressed.
• When scanning of an original ends.
• When CCD is adjusted (in service mode).

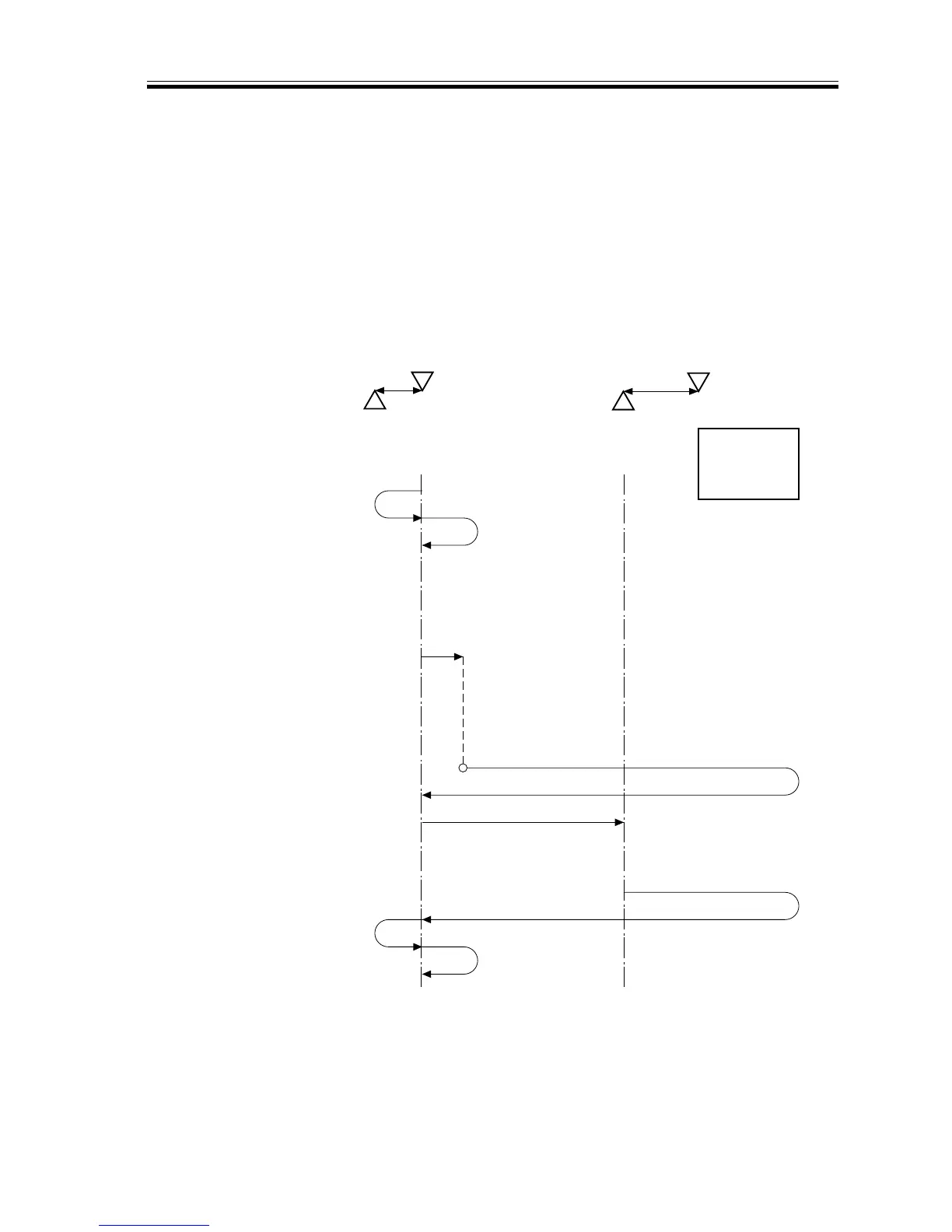

F02-103-01
PS37
2mm
14mm
1. HP search at power-on
2. Shading correction
3. Original detection
4. Original scanning
Home position
Start position
Original leading edge
Original
